Description

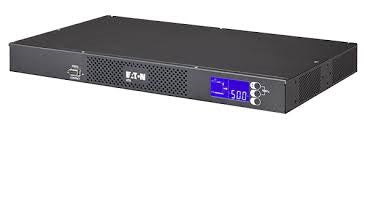

16A, 208/220/230/240V, 50/60Hz, 2 IEC C20 + 8 IEC C13, LCD, 3.3kg, Black
Seamless power transfer
Eaton ATS are designed to provide power supply redundancy for single connection equipment. With ATS, power from two independent sources can be supplied to IT equipment, which have only one input power supply.
Redundancy
Only advanced servers are equipped with a dual electrical power supply. The majority of network devices and entry-level servershave a single connection with only one electrical power input.
With the Eaton ATS, critical equipment can be connected to a redundant power supply.
Both sources (primary and secondary) are connected in a straightforward manner to the ATS in the base of the rack.
The Eaton ATS then controls the redundancy of this electrical power supply. If the primary source fails, transfer to the secondary source is automatic and instantaneous.
Simple and cost-effective
Considering the advanced design of the Eaton ATS, these are highly competitive in price compared with the ‘dual power supply’ options available from suppliers of networking equipment. 1U high, the unit can be installed easily within the rack. Metering and basic configuration capabilities are possible through ATS 16’s LCD.
Network connectivity
The ATS 16 Netpack and ATS 30 provide network connectivity.
This allows users to access, configure and manage units from
remote locations.
Description
Power Source Transfer SwitchSeamless power transfer
Eaton ATS are designed to provide power supply redundancy for single connection equipment. With ATS, power from two independent sources can be supplied to IT equipment, which have only one input power supply.
Redundancy
Only advanced servers are equipped with a dual electrical power supply. The majority of network devices and entry-level servershave a single connection with only one electrical power input.
With the Eaton ATS, critical equipment can be connected to a redundant power supply.
Both sources (primary and secondary) are connected in a straightforward manner to the ATS in the base of the rack.
The Eaton ATS then controls the redundancy of this electrical power supply. If the primary source fails, transfer to the secondary source is automatic and instantaneous.
Simple and cost-effective
Considering the advanced design of the Eaton ATS, these are highly competitive in price compared with the ‘dual power supply’ options available from suppliers of networking equipment. 1U high, the unit can be installed easily within the rack. Metering and basic configuration capabilities are possible through ATS 16’s LCD.
Network connectivity
The ATS 16 Netpack and ATS 30 provide network connectivity.
This allows users to access, configure and manage units from
remote locations.
Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Ports & interfaces | |
| Master AC outlets quantity | 9 |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Features | |
| LED indicators | Yes |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Ergonomics | |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Nominal input voltage | 230 V |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Weight & dimensions | |
| Weight | 3.3 kg |
| Width | 430 mm |
| Depth | 250 mm |
| Height | 43 mm |
| Packaging content | |
| Rack mount kit | Yes |
