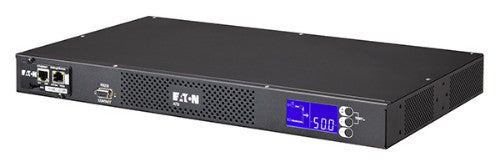

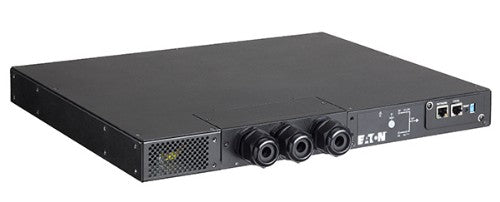

Eaton ATS16N uninterruptible power supply (UPS) 9 AC outlet(s)

208-240 V, 50/60 Hz, 16 A, 8 ms

Description

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Features
- Provides power redundancy to IT equipment
- Alternative to expensive redundant power supplies available from networking equipment vendors
- Compact, 1U rack form factor
- Seamlessly switches from one power source to the other
- Network management on ATS 30 and ATS 16 Netpack versions

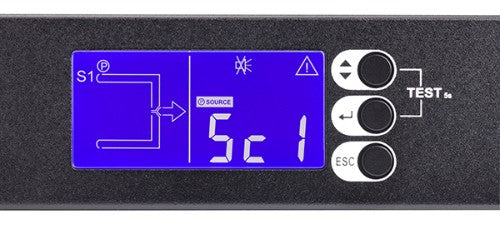

- LCD with metering and basic configuration capabilities

Specifications

Power
Input operation voltage (min)	208 V
Input operation voltage (max)	240 V
Maximum current	16 A
Performance
Number of output phases	1
Number of input phases	1
Number of phases	1
Response time	8 ms
LED indicators	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Number of output phases	1
Number of input phases	1
Response time	8 ms
Input operation voltage (min)	208 V
Input operation voltage (max)	240 V
Maximum current	16 A
Input frequency	50/60 Hz
Number of phases	1
Ports & interfaces
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	8
Ethernet LAN (RJ-45) ports	1
Design
Rack capacity	1U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black
Safety	IEC/EN 62310-1, IEC/EN 60950-1
Certification	IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE
Display type	LED
Technical details
Output frequency	50/60 Hz
Mounting	Horizontal
Harmonized System (HS) code	85078000
Management features
Web-based management	Yes
Weight & dimensions
Weight	3.5 kg
Width	440 mm
Height	43 mm
Depth	250 mm
Packaging data
Rack mount kit	Yes
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC/EN 62310-1, IEC/EN 60950-1
Certification	IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE
Other features
Mounting	Horizontal
Number of phases	1
Nominal input voltage	230 V
Packaging content
Rack mount kit	Yes
