Description
2-Line VFD Customer Display (Black) RS-232 interface.
- VFD display incl. 0.5m hard wired RJ45 cable
- Base with ports for Host/PC (DB21), VFD Display (RJ45), printer (DB9), and Power Adapter.
- 12V Power Adapter.
- 1.5m RS232 (DC9 and DB21) cable.

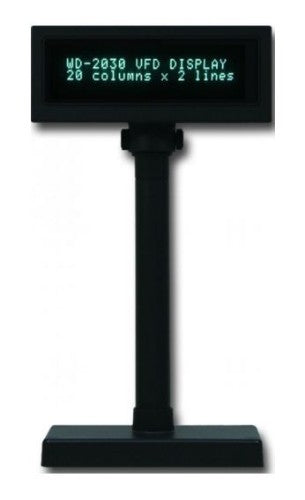

The WD-2030 from Capture is a high-quality, well designed customer display. Its compact size and flexible adjustment lets it fit perfectly on any counter.
The easy to read - line display and adjustable viewing angel ensures customer friendly communication.
Key Features
- Display 2 lines with 20 characters each
- Easy to read blue-green display
- Adjustable to get optimal view angle
- Including 2 poles for base position installation
- The DIP-switches setting emulate commands mode, baud rate and international characters
- Characters can be defined by user-defined character commands
- USB emulation RS-232C, baud rate 4,800, 9,600, 19,200 and 115,200 bps.
Description
What's in the box:- VFD display incl. 0.5m hard wired RJ45 cable
- Base with ports for Host/PC (DB21), VFD Display (RJ45), printer (DB9), and Power Adapter.
- 12V Power Adapter.
- 1.5m RS232 (DC9 and DB21) cable.
The WD-2030 from Capture is a high-quality, well designed customer display. Its compact size and flexible adjustment lets it fit perfectly on any counter.
The easy to read - line display and adjustable viewing angel ensures customer friendly communication.
Specifications
| Ports & interfaces | |
|---|---|
| Interface | RS-232 |
| Weight & dimensions | |
| Weight | 200 g |
| Packaging data | |
| Package width | 387 mm |
| Package height | 97 mm |
| Package depth | 281 mm |
| Package weight | 1.39 kg |
