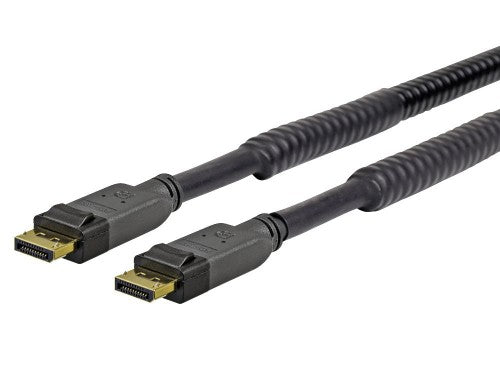

Vivolink PRODPAM20 DisplayPort cable 20 m Black

Pro DP Armouring Cable 20m

Key Features

• Ultra high resolution of 4K@60Hz
• 99.9% copper conductor
• High quality type A connector with lock, 15um gold min.
• Triple shielding in cable and extra shielding in connector
• Mechanical lock incorporated in the connector prevents connection loss
• High flexibility ensuring small bending radius
• Armoured

Description

High Performance DisplayPort Cable.


Supporting 4K resolution with refreshrate of 60Hz. It's enhanced flexibility ensures a small bending radius. The DisplayPort Cables offer both technical and physical advantages, especially in long distance professional applications.

Specifications

Features
Latching connectors	Yes
DisplayPort Content Protection (DPCP)	Yes
Product colour	Black
Number of shielding layers	3
Cable length	20 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	24/1
DisplayPort version	1.2
Data transfer rate	21.6 Gbit/s
3D	Yes
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
HDCP	Yes
Plug and Play	Yes
Maximum refresh rate	60 Hz
Packaging data
Cable diameter	9 mm
Package weight	4.35 kg
Weight	2 kg
Package width	370 mm
Package depth	370 mm
Package height	120 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	9 mm
Package weight	4.35 kg
Weight	2 kg
Package width	370 mm
Package depth	370 mm
Package height	120 mm
Packaging content
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
