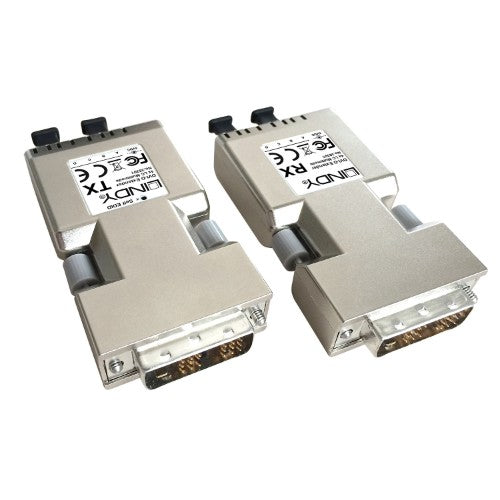

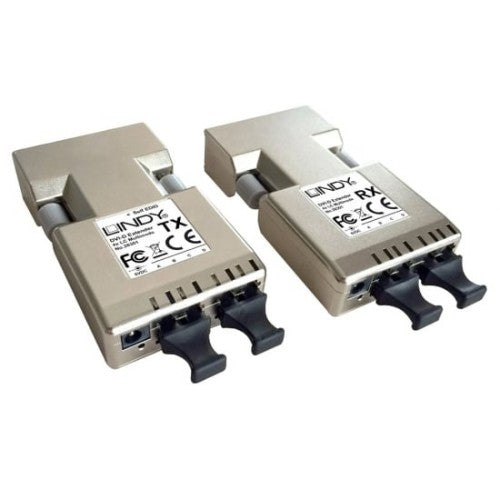

Lindy 500m Fibre Optic DVI-D Single Link Extender

500m Fibre Optic DVI-D Single Link Extender

Key Features

• Extends DVI-D signals at distances of up to 500m using dual fibre optic cables (not included)
• Compatible with DVI-D 2.0 specifications including HDTV and HD-Ready displays
• Supports HDTV resolutions up to 1920 x 1200 @ 60Hz / 1080p @ 60 Hz
• 6Gbps Total Bandwidth over Dual Duplex or 4x LC Simplex Fibre Optic Cables
• 2 year warranty

Description

Easy to set up and install the compact Lindy LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included).

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using two, standard 'off the shelf' LC Duplex Fibre cable fibre optic cables (not included).

Specifications

Features
Material	Metal
HDCP	Yes
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Fiber
Maximum transfer distance	500 m
Product colour	Metallic
Technical details
Material	Metal
HDCP	Yes
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Fiber
Maximum transfer distance	500 m
Product colour	Metallic
Connector 2	LC
Connector 1	LC
Ports & interfaces
DVI input ports	1
DVI output ports	1
DC-in jack	Yes
Weight & dimensions
Receiver weight	10 g
Transmitter weight	10 g
Transmitter dimensions (WxDxH)	40 x 70 x 15 mm
Receiver dimensions (WxDxH)	40 x 70 x 15 mm
Dimensions (WxDxH)	40 x 70 x 15 mm
Packaging content
Cables included	Fiber
