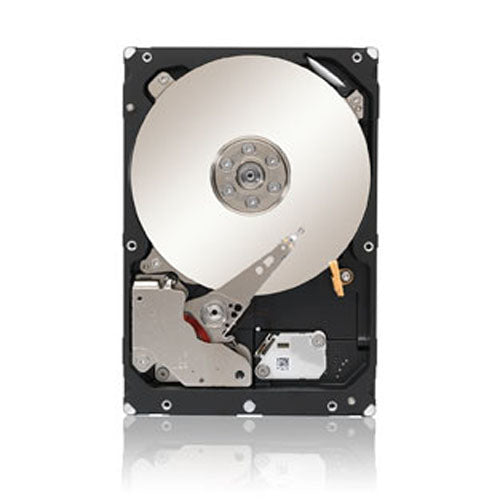

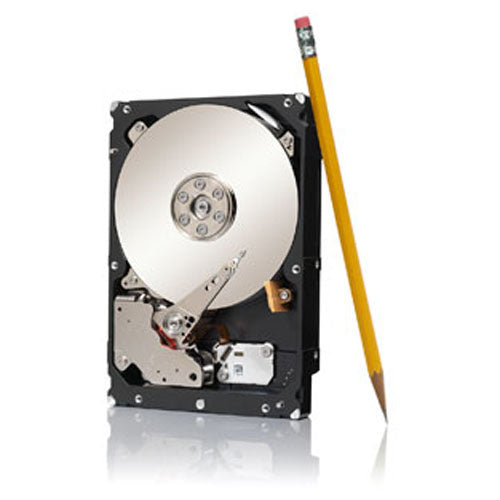

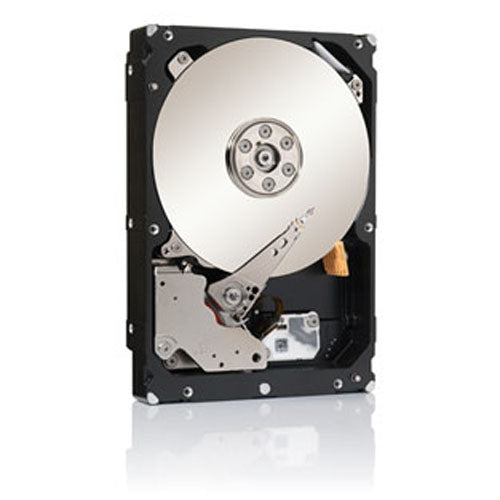

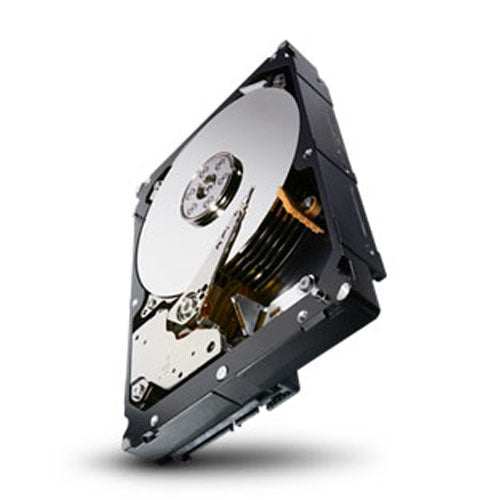

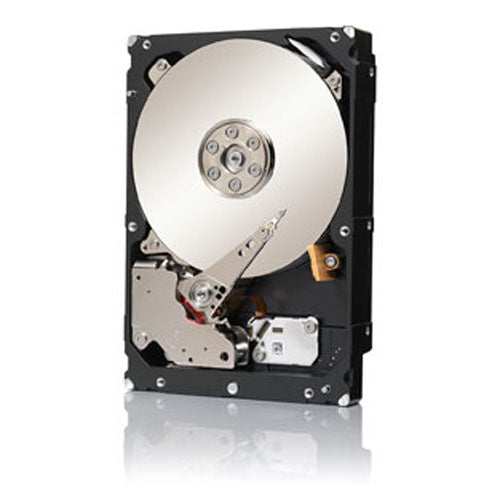

Seagate Constellation ES.3 1TB internal hard drive 7200 RPM 128 MB 3.5" Serial ATA III

Constellation® ES.3 1TB, 7200rpm, 128MB, SATA 6Gb/s

Description

The Seagate® Constellation® ES.3 enterprise HDD delivers the scalability that data centres need to meet their demanding growth of unstructured data reliably.

- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements

Specifications

Hard drive
Data transfer rate	6 Gbit/s
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	1 TB
Features
Interface	Serial ATA III
Average latency	4.16 ms
Bytes per sector	512
Mean time between failures (MTBF)	1400000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	1 TB
Storage drive buffer size	128 MB
Power
Power consumption (typical)	8.08 W
Power consumption (idle)	4.45 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating shock	70 G
Non-operating vibration	0.25 G
Non-operating shock	300 G
Technical details
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Power requirements	+12V & +5V
Mean time between failures (MTBF)	1400000 h
Internal	Yes
Weight & dimensions
Width	101.8 mm
Weight	605 g
Height	26.1 mm
Depth	147 mm
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
Power requirements	+12V & +5V
Data transfer rate	6 Gbit/s
Internal	Yes
