Description

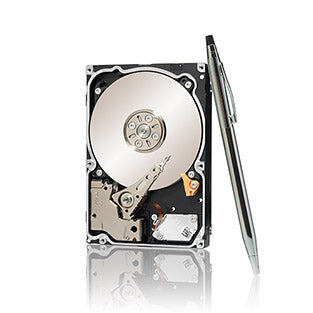

Constellation 7200.2 - 500GB HDD, 7200rpm, 64MB, 2,5", SATA 6Gb/s, BLK
Key Features and Benefits:
- Industry’s first 2.5-inch 500 GB capacity-optimized drive for dense, space-constrained data centers allows you to store twice as much data in the same footprint.
- Build highly efficient bulk storage solutions while lowering your power consumption costs
- Designed for robust 24x7 operation with a 1.4M hour mean-time-between-failure (MTBF) rating
- Best-in-class rotational vibration tolerance ensures unrivaled performance in high spindle-density applications, and multi-drive firmware maximizes system availability
- Choose from 6Gb/s SAS with improved data integrity, scalability and fastest data access or SATA 6Gb/s for economical 7200-RPM performance
- TCG- compliant, Self-Encrypting Drive (SED) security option cuts IT drive retirement expenses while securely protecting data
Description
Seagate Constellation.2 - drives are the most energy efficient enterprise drives on the market. Designed for enterprise robustness, Constellation.2 is available in capacities up to 1TB and offers reliable storage for high capacity servers and storage arrays in a minimal footprint.Key Features and Benefits:
- Industry’s first 2.5-inch 500 GB capacity-optimized drive for dense, space-constrained data centers allows you to store twice as much data in the same footprint.
- Build highly efficient bulk storage solutions while lowering your power consumption costs
- Designed for robust 24x7 operation with a 1.4M hour mean-time-between-failure (MTBF) rating
- Best-in-class rotational vibration tolerance ensures unrivaled performance in high spindle-density applications, and multi-drive firmware maximizes system availability
- Choose from 6Gb/s SAS with improved data integrity, scalability and fastest data access or SATA 6Gb/s for economical 7200-RPM performance
- TCG- compliant, Self-Encrypting Drive (SED) security option cuts IT drive retirement expenses while securely protecting data
Specifications
| Hard drive | |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1400000 h |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| HDD capacity | 500 GB |
| Features | |
| Interface | Serial ATA |
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Mean time between failures (MTBF) | 1400000 h |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| HDD capacity | 500 GB |
| Storage drive buffer size | 64 MB |
| Power | |
| Power consumption (typical) | 4.51 W |
| Power consumption (idle) | 2.67 W |
| Start-up current | 0.79 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 70 G |
| Non-operating shock | 400 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | Serial ATA |
| Mean time between failures (MTBF) | 1400000 h |
| Internal | Yes |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 183 g |
| Height | 14.8 mm |
| Depth | 100.5 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | Serial ATA |
| Data transfer rate | 6 Gbit/s |
| Internal | Yes |
