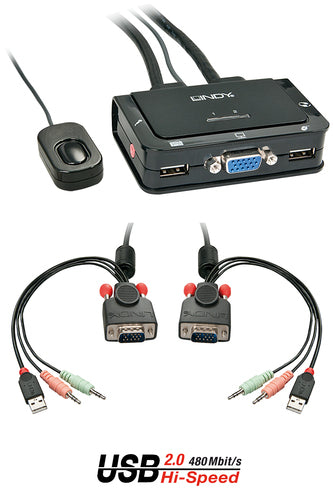

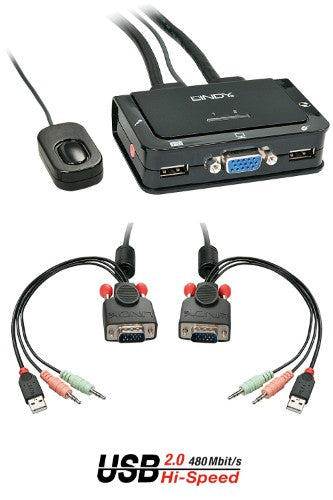

2 Port VGA, USB 2.0 & Audio Cable KVM Switch
Description
Control two VGA equipped PCs from a single keyboard, mouse and monitor
Switch via the unit’s push button control, software or keyboard hot keys
Supports VGA signals, up to 2048x1536
Integrated cables for quick, hassle-free installation
2 Year Warranty
The Lindy 2 Port VGA, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two VGA equipped PCs from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need for purchasing additional cables and saving time on the installation.
Support for resolutions up to 2048x1536 ensures the optimum image quality, perfect for high graphical content in gaming setups, video editing or dual system control workstations. The audio output port on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.
The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.
Specifications
| Ports & interfaces |
|---|
| Cable length |
0.9 m |
| Number of microphone inputs |
1 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Audio connections |
Yes |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| Headphone outputs |
1 |
| Console port |
VGA |
| Technical details |
|---|
| Product colour |
Black |
| LED indicators |
Yes |
| Design |
|---|
| Product colour |
Black |
| Cable length |
0.9 m |
| LED indicators |
Yes |
| Display |
|---|
| Built-in display |
No |
| System requirements |
|---|
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Weight & dimensions |
|---|
| Width |
90 mm |
| Depth |
70 mm |
| Height |
25 mm |
| Packaging content |
|---|
| Cables included |
Audio (3.5mm), USB, VGA |
| Manual |
Yes |
