Description

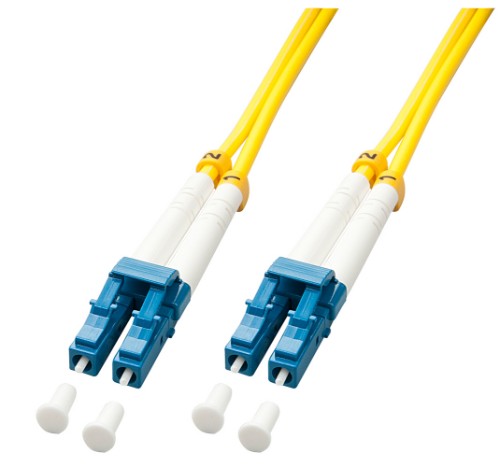

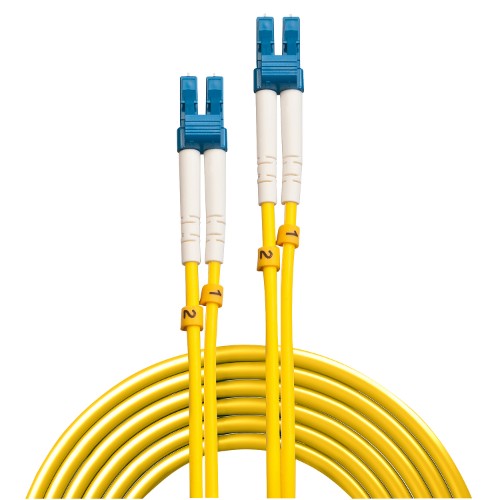

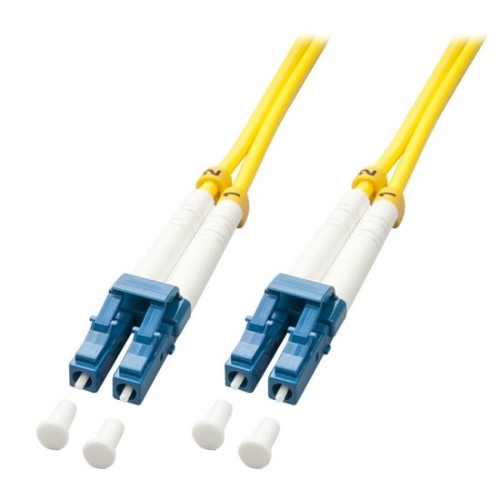

1m LC-LC OS2 9/125 Fibre Optic Patch Cable
The ceramic connectors ensure low signal loss and high reliability, while the connectors are compatible with all standard fibre optic equipment.
Key Features
- 2 x LC Male to 2 x LC Maleandnbsp;
- Twin Zip, Singlemode 9/125µmandnbsp; fibre
- Total immunity to electrical and electromagnetic interference (EMI)
- 3mm OD, LS0H cable
- 10 Year Warranty
Description
Lindy Singlemode fibre optic patch cables are ideal for use in telecoms and for high speed data connections, suitable for use with today's increasing demand for bandwidth.The ceramic connectors ensure low signal loss and high reliability, while the connectors are compatible with all standard fibre optic equipment.
Specifications
| Technical details | |
|---|---|
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Features | |
| Fibre optic type | OS2 |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 1 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Harmonized System (HS) code | 85447000 |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Weight & dimensions | |
| Cable length | 1 m |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
