Telescopic Parapet Mount
Key Features
- Adjustable length, telescopic arm; Corrosion protected; Installation flexibility: parapet and wall; Swivel - easy to install and maintain
Description

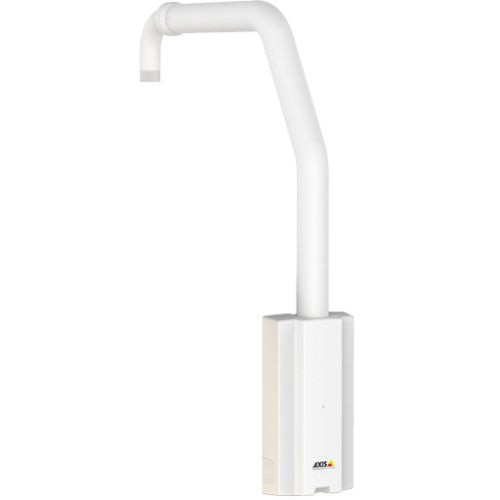

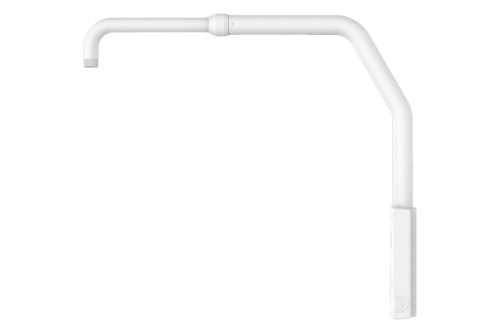

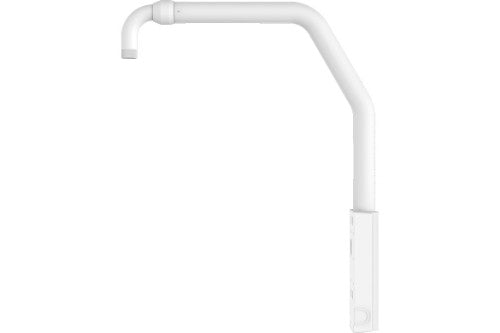

AXIS T91D62 Telescopic Parapet Mount is made for parapet and wall installations when the requirement is to place the camera further out from the wall. To compensate for different parapet thicknesses or obstructive elements on the facade of the building, the arm length is adjustable. Its ability to swivel 180 degrees on its own axis, allows for easy and safe mounting/maintenance of the camera from a rooftop. The mount is intended for outdoor fixed and PTZ dome cameras supporting 1.5” NPS thread. A retrofit mounting bracket (optional accessory) makes it possible to reuse holes drilled for Pelco’s PTZ dome parapet mount.
Specifications
| Features |
|---|
| Material |
Aluminium |
| Product colour |
White |
| Certification |
IEC/EN/UL 60950-1
IEC/EN/UL 60950-22
IEC 62262 IK10
NEMA 250 Type 4X
EN 50581 |
| Compatibility |
AXIS M30
AXIS P32
AXIS P33
AXIS Q35-V
AXIS Q35-VE
AXIS Q37
AXIS Q56
AXIS Q60
AXIS Q61 |
| Number of products included |
1 pc(s) |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Material |
Aluminium |
| Product colour |
White |
| Certification |
IEC/EN/UL 60950-1
IEC/EN/UL 60950-22
IEC 62262 IK10
NEMA 250 Type 4X
EN 50581 |
| Compatibility |
AXIS M30
AXIS P32
AXIS P33
AXIS Q35-V
AXIS Q35-VE
AXIS Q37
AXIS Q56
AXIS Q60
AXIS Q61 |
| Weight & dimensions |
|---|
| Depth |
783 mm |
| Height |
1007 mm |
| Weight |
5.9 kg |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
