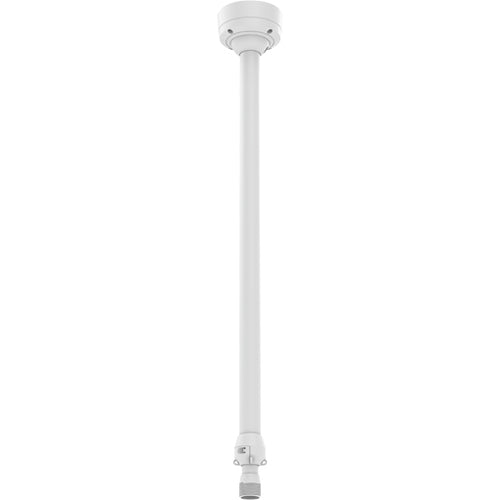

Axis T91B50 Telescopic Ceiling Mount

10 kg max, ±45°, 1151 - 2136 mm, IK10

Key Features

• Flexible length, up to 5 m (197 in) with extension pipes; For outdoors and indoors; Robust and safe installation; Support for Axis PTZ domes and fixed domes with 1.5” NPS thread; Swivel action with a ±45° pivot angle

Description

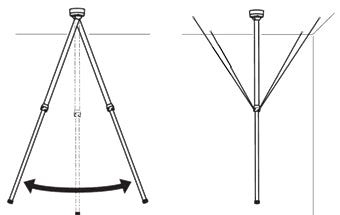

AXIS T91B50 Telescopic Ceiling Mount is ideal where a PTZ /fixed dome camera needs to be installed in a high ceiling. The telescopic functionality allows the installer to adjust the length in an easy and secure way (up to 2 m/79 in). If a longer length is needed, two extension pipes are available, 30 cm (12 in) and 100 cm (39 in). The mount is designed to swing and not break if hit by forklifts or tall vehicles. It can also be installed in sloped ceilings thanks to the ball joint, which ensures that the camera is still hanging straight.

Specifications

Features
Housing material	Aluminium
Compatibility	AXIS P55/P56/Q60/Q61 AXIS M50 AXIS P33 AXIS P32/Q35 AXIS M3004-V/M3005-V AXIS M3006-V/M3007-P/ M3007-PV AXIS M3024-LVE/M3025-VE/M3026-VE/M3027-PVE/M3037-PVE AXIS P3707-PE AXIS Q3709-PVE
Type	Mount
Placement supported	Universal
Product colour	White
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 EN 50581 IEC/EN 62262 IK10 NEMA 250 Type 4X
Tilt angle range	-45 - 45°
Maximum weight capacity	10 kg
Ergonomics
Tilt angle range	-45 - 45°
Maximum weight capacity	10 kg
Technical details
Compatibility	AXIS P55/P56/Q60/Q61 AXIS M50 AXIS P33 AXIS P32/Q35 AXIS M3004-V/M3005-V AXIS M3006-V/M3007-P/ M3007-PV AXIS M3024-LVE/M3025-VE/M3026-VE/M3027-PVE/M3037-PVE AXIS P3707-PE AXIS Q3709-PVE
Type	Mount
Placement supported	Universal
Tilt angle range	-45 - 45°
Maximum weight capacity	10 kg
Harmonized System (HS) code	85299020
Weight & dimensions
Weight	4.1 kg
Height	2136 mm
Colour
Product colour	White
Certificates
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 60950-22 EN 50581 IEC/EN 62262 IK10 NEMA 250 Type 4X
Logistics data
Harmonized System (HS) code	85299020
