Description

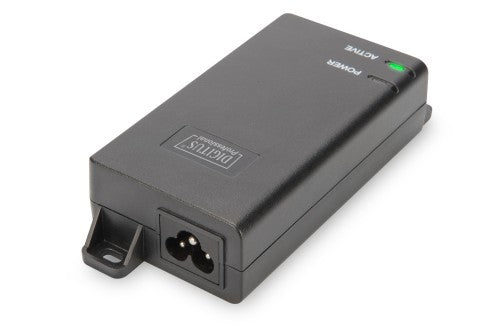

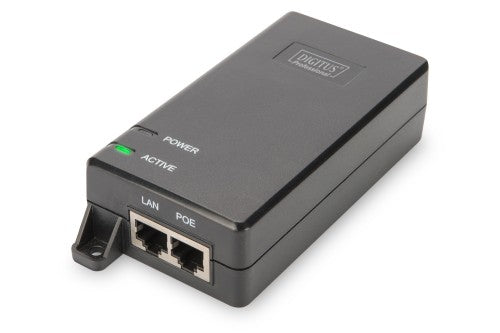

Gigabit Ethernet PoE+ Injector, 802.3at Power Pins:4/5(+),7/8(-), 30W
- Compatibility with IEEE 802.3at PoE+ and IEEE 802.3af PoE standard: Supports common PoE standards so that a wide range of PoE devices can be easily connected
- Combined power and data transmission: Simplify cabling by combining power and data cables in a single cable, reducing installation effort
- Network expansion without additional power lines: Expand your network even in locations without existing power lines or outlets, increasing flexibility and cost efficiency
- Plug-and-play installation: No configuration required, making installation quick and easy, even for users with no technical knowledge
- Support for all IEEE 802.3af-compliant PoE devices: Compatible with a wide range of devices such as access points, VoIP telephones and IP cameras, offering versatile application options
- Transmission range up to 100 m, extendable to 400 m: flexibility in the placement of devices, even in large buildings and outdoor areas, with additional PoE extender
- Energy-efficient operation with low self-consumption: Low self-consumption of maximum 7.0 W, which reduces operating costs and saves energy
- High output power and voltage: With an output power of 30 watts and an output voltage of 55 V DC, even power-intensive devices can be operated

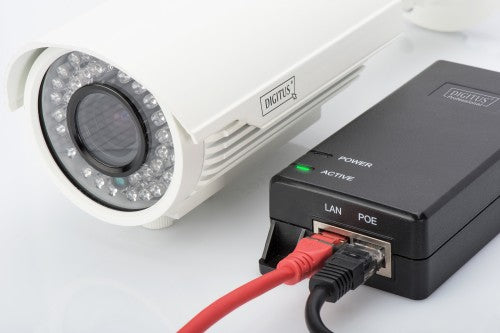

With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE802.3at standard and delivers an output power of 30 watts.
Key Features
- Complies with the 802.3at PoE+ and the 802.3af PoE standard
- Easy merging of power and data cables into a single cable
- Expand your network where there are no power lines or sockets
- No configuration required
- Supports all IEEE 802.3af-compliant PoE devices (e.g. access points, VoIP telephones and IP cameras)
- Transmission range up to 100 m - with an additional PoE extender even up to 400 m
- Self-consumption (fully utilized): 7.0W Max.

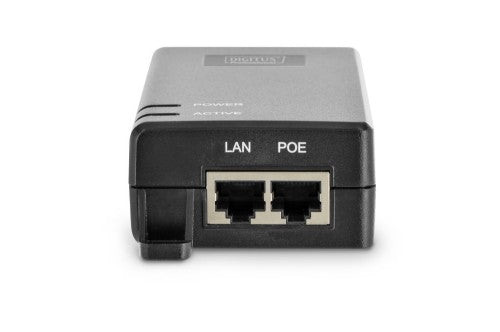

- Input: 1x RJ-45 (data)
- Output: 1x RJ-45 (power & data)
- Data output: 100/100/1000 Mbit/s Gigabit
- Output power: 30 watts
- Output voltage: 55 V DC
- Operating temperature range: -5 °C to +40 °C
- Dimensions: 140 mm x 63 mm x 32.5 mm
- Weight: 200 g
- The output has a current limiter, short-circuit protection and automatic terminal device detection and classification
Description
Minimize your cabling effort for wireless APs, IP phones or any other PoE-capable device!- Compatibility with IEEE 802.3at PoE+ and IEEE 802.3af PoE standard: Supports common PoE standards so that a wide range of PoE devices can be easily connected
- Combined power and data transmission: Simplify cabling by combining power and data cables in a single cable, reducing installation effort
- Network expansion without additional power lines: Expand your network even in locations without existing power lines or outlets, increasing flexibility and cost efficiency
- Plug-and-play installation: No configuration required, making installation quick and easy, even for users with no technical knowledge
- Support for all IEEE 802.3af-compliant PoE devices: Compatible with a wide range of devices such as access points, VoIP telephones and IP cameras, offering versatile application options
- Transmission range up to 100 m, extendable to 400 m: flexibility in the placement of devices, even in large buildings and outdoor areas, with additional PoE extender
- Energy-efficient operation with low self-consumption: Low self-consumption of maximum 7.0 W, which reduces operating costs and saves energy
- High output power and voltage: With an output power of 30 watts and an output voltage of 55 V DC, even power-intensive devices can be operated
With the help of the Digitus PoE injector, you can minimize your cabling effort when installing PoE-capable devices such as IP network cameras. The data and power supply for the devices is only fed in via an Ethernet cable. This eliminates the need to lay a separate power cable and enables you to expand your network even where there are no sockets or power cables. The injector is fully compatible with the IEEE802.3at standard and delivers an output power of 30 watts.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) voltage | 48 V |
| Features | |
| Maximum operating distance | 400 m |
| Product colour | Black |
| LED indicators | Yes |
| Networking standards | IEEE 802.3at |
| Country of origin | China |
| Package type | Box |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Output power | 30 W |
| Power consumption (max) | 7 W |
| Total Power over Ethernet (PoE) budget | 30 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
| Weight | 200 g |
| Dimensions (WxDxH) | 140 x 63 x 32.5 mm |
| Package weight | 425 g |
| Package depth | 165 mm |
| Package volume | 1138.5 cm³ |
| Package width | 138 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 425 g |
| Package type | Box |
| Package depth | 165 mm |
| Package volume | 1138.5 cm³ |
| Package width | 138 mm |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 138 mm |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85044095 |
| UK Trade Tariff code | 85176200 |
