Description

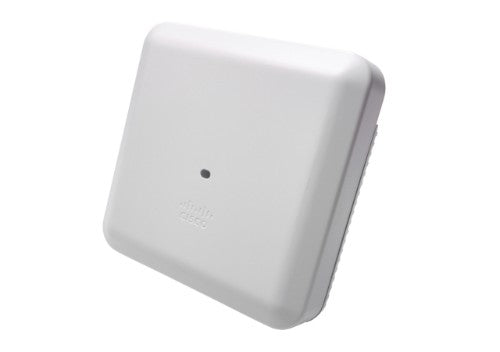

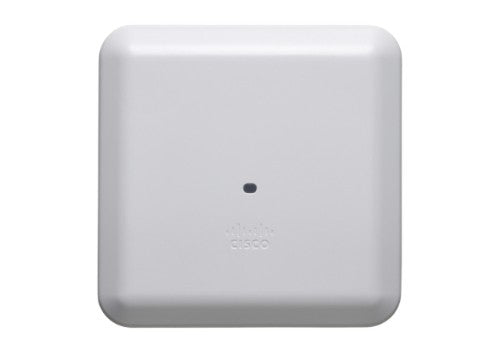

Aironet 2802I-E-K9 Wi-Fi Access Point, 802.11ac Wave 2, with Internal Antenna (AIR-AP2802I-E-K9)
Key Features
- MU-MIMO: 802.11ac Wave 2 with 4x4 Multiple-Input Multiple-Output (MIMO) technology with three spatial streams, offering connection rate of up to 2.6 Gbps per radio – roughly double the rates offered by today’s high-end 802.11ac access points
- APPLICATION VISIBILITY AND CONTROL: Network Based Application Recognition (NBAR) deep-packet inspection technology provides application-aware control on a wireless network and enhances manageability and productivity. It also extends Cisco’s Application Visibility and Control (AVC) as an end-to-end solution, which gives a complete visibility of applications in the network and allows the administrator to take some action on the same.
- RADIO RESOURCE MANAGEMENT: Cisco's Radio Resource Management (abbreviated RRM) allows Cisco's Unified WLAN Architecture to continuously analyse the existing RF environments, automatically adjusting each AP's power and channel configurations to help mitigate things such as co-channel interference and signal coverage problems. RRM reduces the need to perform exhaustive site surveys, increases system capacity and provides automated self-healing functionality to compensate for RF dead zones and AP failures
- FLEXIBLE RADIO ASSIGNMENT: Software-defined radio automatically adjusts to dual 5 GHz increasing capacity to onboard more users and things automatically
- HDX HIGH DENSITY EXPERIENCE: Award-winning CleanAir to mitigate Wi-Fi and non-Wi-Fi interference, ClientLink to conserve battery life on mobile devices
Description
The Cisco Aironet 2800 Series comes with the Best-in-class RF architecture, Aironet 2800 Series provides high-performance coverage for a high density of client devices, giving the end user a seamless wireless experience. 2800 Series Access Point is powered with industry-leading innovations such as Cisco CleanAir, ClientLink 4.0, Flexible Radio Assignment, cross-access point noise reduction and an optimised client roaming.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 5200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Country of origin | Mexico |
| On/off switch | Yes |
| Transmitting power | 23 dBmW |
| Frequency band | 2.412 - 2.472, 5.18 - 5.32, 5.5 -5.6, 5.64 - 5.7 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channels quantity | 29 channels |
| Channel bandwidth | 20 MHz |
| Certification | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155 |
| Maximum data transfer rate | 5200 Mbit/s |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Wireless LAN features | |
| Frequency band | 2.412 - 2.472, 5.18 - 5.32, 5.5 -5.6, 5.64 - 5.7 GHz |
| Channels quantity | 29 channels |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u |
| Bandwidth | |
| Channel bandwidth | 20 MHz |
| Certificates | |
| Certification | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155 |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Transmitting power | 23 dBmW |
| Frequency band | 2.412 - 2.472, 5.18 - 5.32, 5.5 -5.6, 5.64 - 5.7 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channels quantity | 29 channels |
| Channel bandwidth | 20 MHz |
| Maximum data transfer rate | 5200 Mbit/s |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Security | |
| Security algorithms | 802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power plug type | Type C |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Country of origin | Mexico |
| On/off switch | Yes |
| Product colour | White |
| LED indicators | Yes |
| Certification | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 EN 50155 |
| Antenna | |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 23 dBmW |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220.5 mm |
| Weight | 1.6 kg |
| Height | 55.2 mm |
| Package width | 246.1 mm |
| Package depth | 246.1 mm |
| Package height | 98.6 mm |
| Package weight | 1.89 kg |
| Packaging data | |
| Package width | 246.1 mm |
| Package depth | 246.1 mm |
| Package height | 98.6 mm |
| Package weight | 1.89 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4570 m |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
