Description
SFP 1000Base-SX/LX, PCI-Express v2.0 2.5GT/s, 2.2W, IEEE 802.3/ad, IEEE 802.1p/Q
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports iSCSI remote boot
- Load balancing across multiple CPUs
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
Description

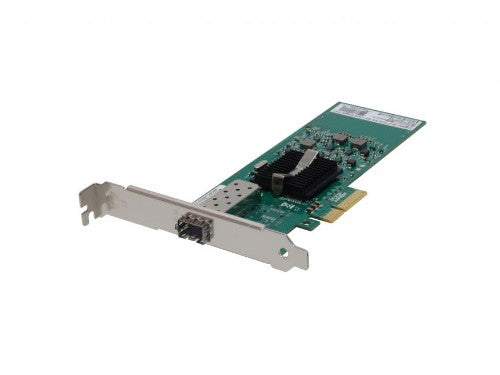

The LevelOne GNC-0120 Gigabit network card facilitates high-speed connectivity within a fiber-optic network, with PCI Express ports supporting speeds of up to 2 Gbps. Wake-on-LAN functionality allows remote start-up and shutdown, with the card also offering advanced load balancing across multiple CPUs. GNC-0120 also features an Intel PROSet Utility for Windows Device Manager, and supports most Network Operating Systems.- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports iSCSI remote boot
- Load balancing across multiple CPUs
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Technical details | |
| Product colour | Aluminium |
| Wake-on-LAN ready | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Power | |
| Power supply | 2.2 W |
| Design | |
| Product colour | Aluminium |
| Internal | Yes |
| LED indicators | Activity, Link |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Indication | |
| LED indicators | Activity, Link |
| System requirements | |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2 |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 68 mm |
| Height | 17 mm |
| Weight | 80 g |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2 |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Other features | |
| Manual | Yes |
| Quick start guide | Yes |
| Power supply | 2.2 W |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
