Description
4 x SFP 1000Base-SX/LX, PCI-Express x4/x2/x1 v2.1, 5.0 GT/s & 2.5 GT/s, 10/100/1000 Mb/s, IEEE 802.3/u/ab/x/z/az, IEEE 802.1Q
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Halogen-free quad-port Gigabit Ethernet adapters with fiber interface options
- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
- Flexible I/O virtualization for port partitioning and quality of service (QoS) for up to 32 virtual ports
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
Description

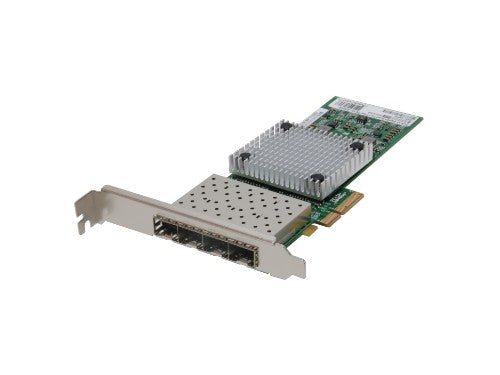

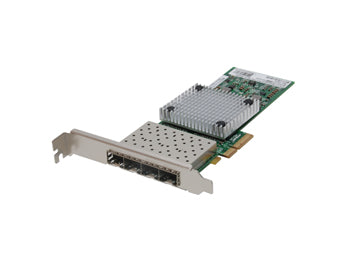

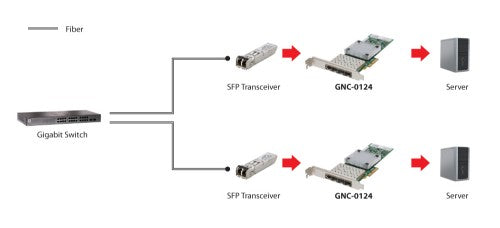

The LevelOne GNC-0124 Gigabit network card facilitates high-speed connectivity within a fiber-optic network. Wake-on-LAN functionality allows remote start-up and shutdown, as well as halogen-free quad-port Gigabit Ethernet adapters with fiber interface options. GNC-0124 also features a range of innovative power management tools, flexible I/O virtualization for port partitioning and QoS for up to 32 ports. Scalable iSCSI performance delivers cost-effective SAN connectivity in a high performance network. The card also offers advanced load balancing across multiple CPUs and is compatible with most Network Operating Systems.- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Halogen-free quad-port Gigabit Ethernet adapters with fiber interface options
- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
- Flexible I/O virtualization for port partitioning and quality of service (QoS) for up to 32 virtual ports
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Aluminium |
| Wake-on-LAN ready | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Network | |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Product colour | Aluminium |
| Internal | Yes |
| LED indicators | Activity, Link |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| Indication | |
| LED indicators | Activity, Link |
| System requirements | |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 69 mm |
| Height | 17 mm |
| Weight | 100 g |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| PCI-SIG* SR-IOV Capable | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Other features | |
| Manual | Yes |
| Quick start guide | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
