Description
SFP Multi-Mode Fiber, PCI 32bit v2.2 66MHz, 2000Mbps, IEEE 802.3ab/x, IEEE 802.1Q
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports 32 bit PCI 1.0 and PCI 2.2 bus
- Supports remote management (WfM,RIS,SNMP/DMI)
- Supports most network operating systems (NOS)
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
Description

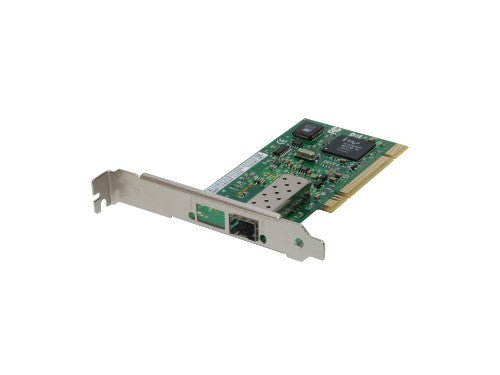

The LevelOne GNC-0100 Gigabit network card facilitates high-speed connectivity within a fiber-optic network. Wake-on-LAN functionality allows remote start-up and shutdown, while Interrupt Moderation technology delivers increased performance while reducing CPU load. The network card supports 32 bit PCI 1.0 and PCI 2.2 bus, as well as supporting multiple operating systems.- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports 32 bit PCI 1.0 and PCI 2.2 bus
- Supports remote management (WfM,RIS,SNMP/DMI)
- Supports most network operating systems (NOS)
- Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Interface | Fiber |
| Host interface | PCI |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Product colour | Aluminium |
| Wake-on-LAN ready | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Design | |
| Product colour | Aluminium |
| Certification | FCC Class B, CE |
| Internal | Yes |
| LED indicators | Activity, Link |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows CE, Windows 98, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| Indication | |
| LED indicators | Activity, Link |
| System requirements | |
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008 |
| Windows operating systems supported | Windows CE, Windows 98, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 57.5 mm |
| Height | 17 mm |
| Weight | 60 g |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 62 g |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Performance | |
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008 |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows CE, Windows 98, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Other operating systems supported | DOS |
| Certificates | |
| Certification | FCC Class B, CE |
| Other features | |
| Manual | Yes |
| Quick start guide | Yes |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
