Description

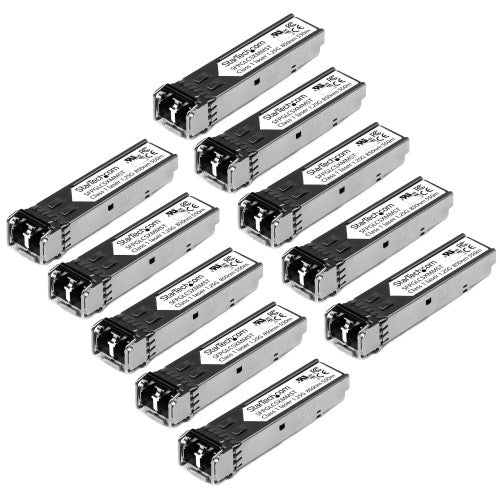

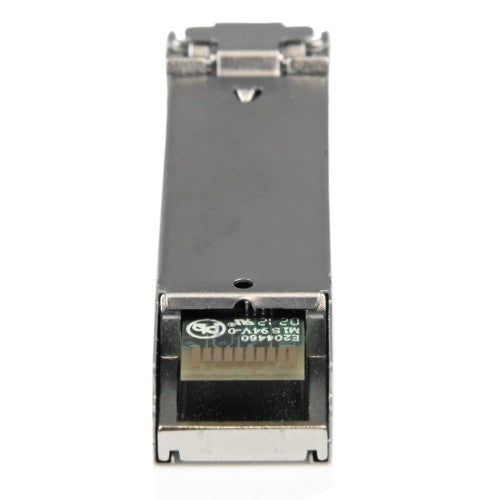

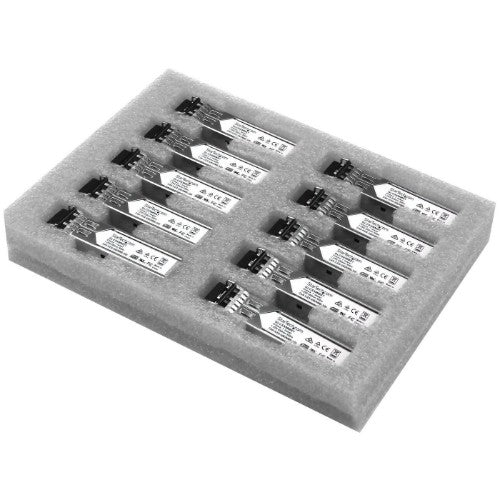

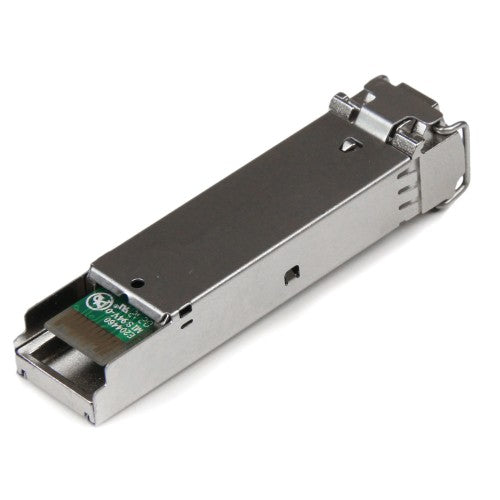

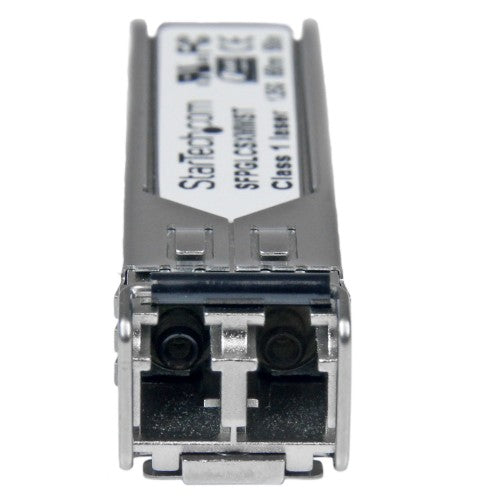

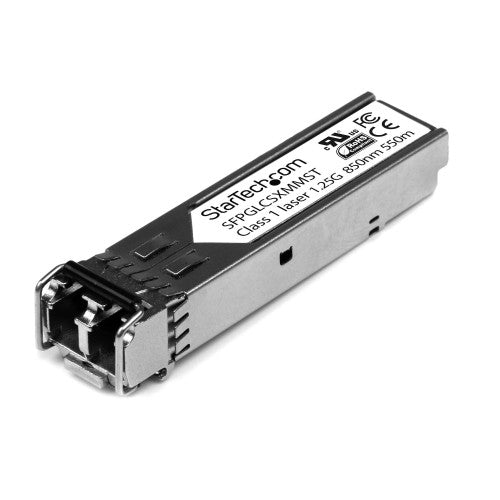

StarTech.com Cisco GLC-SX-MM Compatible SFP Module (10 Pack) - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GbE SFP - LC 550m - 850nm DDM Cisco IE3200, IE3300, ME1200 (GLCSXMM10PST)
The GLCSXMM10PST is a ten-pack of our Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key Features
- 100% CISCO GLC-SX-MM COMPATIBLE: Works with Cisco switches like IE3200, IE3300, ME1200, ME2400, N9300 and others
- TECHNICAL SPECS: 1000BASE-SX / 1 Gbps / Multi Mode (MMF) / LC Connector / 850nm / Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe GLCSXMM10PST is a ten-pack of our Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Wavelength-division multiplexing (WDM) | No |
| Digital Diagnostics Monitoring (DDM) | No |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Duplex system | Full, Half |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3381761 h |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 16 g |
| Package depth | 181 mm |
| Package width | 124 mm |
| Package height | 36 mm |
| Package weight | 214 g |
| Packaging content | |
| Quantity per pack | 10 pc(s) |
| Technical details | |
| Package width | 124 mm |
| Package height | 36 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Duplex system | Full, Half |
| Compliance certificates | CE, RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 181 mm |
| Package width | 124 mm |
| Package height | 36 mm |
| Package weight | 214 g |
| Logistics data | |
| Quantity per pack | 10 pc(s) |
| Master (outer) case width | 348 mm |
| Master (outer) case length | 417 mm |
| Master (outer) case height | 355 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 85369010 |
