Description
HDMI de-embedder
Typical installations:
Box is used when sound should be separated from HDMI signal
E.g. picture to monitor and sound to audio sytem / active speakers like VLSP60AW
Audio pass through to HDMI Out
Key Features
- Separate sound from HDMI signal
- HDMI 18G HDMI repeater

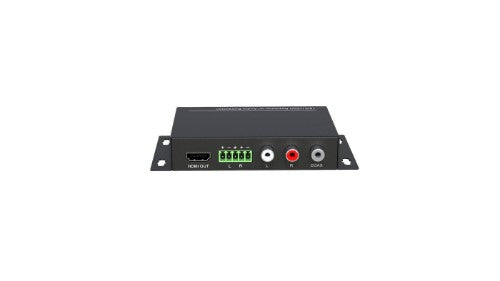

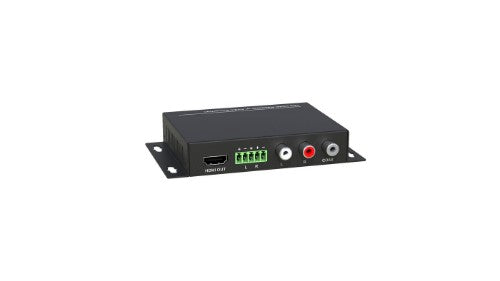

- Audio out via RCA, balanced audio and Coax
Description
Separate sound from HDMI 18G HDMI repeater + Audio out via RCA, balanced audio and CoaxTypical installations:
Box is used when sound should be separated from HDMI signal
E.g. picture to monitor and sound to audio sytem / active speakers like VLSP60AW
Audio pass through to HDMI Out
Specifications
| Technical details | |
|---|---|
| Maximum data transfer rate | 18 Gbit/s |
| LED indicators | Power |
| HDMI version | 2.0 |
| HDCP | Yes |
| Product colour | Black |
| Weight & dimensions | |
| Package width | 197 mm |
| Package depth | 148 mm |
| Package height | 68 mm |
| Package weight | 556 g |
| Width | 197 mm |
| Depth | 148 mm |
| Height | 68 mm |
| Weight | 500 g |
| Power | |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 3 W |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Inputs | |
| HDMI in | 1 |
| Outputs | |
| Number of HDMI outputs | 1 |
