Description
HDMI HDCP Converter

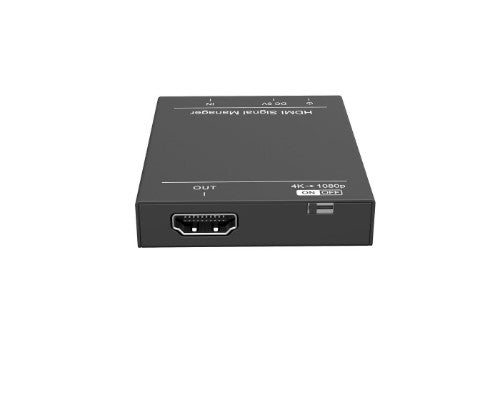

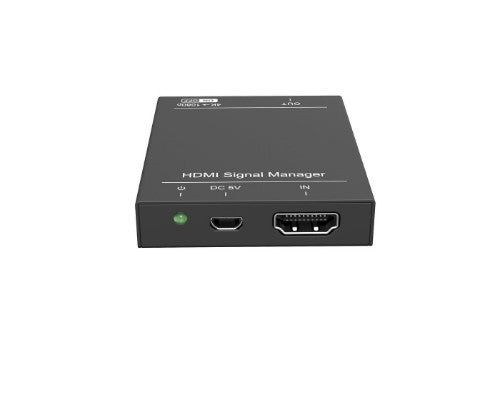

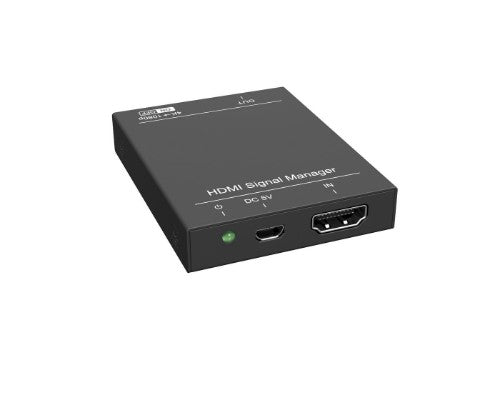

The VL120015 is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. The unit can be powered by HDMI source or with external power supply via Micro-USB.
Simple installation and operation.
Key Features
- Input supports HDCP2.2
- Supports EDID bypass and auto input resolution detection, make sure the best resolution of display device
- The transmission of 4k@60Hz 4:4:4 signal from source to display is up to 10m
- Degrade to HDCP1.4
Description
Vivolink HDMI HDCP Convert 2.2 to 1.4The VL120015 is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. The unit can be powered by HDMI source or with external power supply via Micro-USB.
Simple installation and operation.
Specifications
| Technical details | |
|---|---|
| Converter type | Active video converter |
| Housing material | Metal |
| Type | HDCP converter 2.2 to 1.2 |
| HDCP | Yes |
| Video out | HDMI |
| Video in | HDMI |
| Extended display identification data (EDID) | Yes |
| Supported video modes | 2160p |
| Plug and Play | Yes |
| Output interface | HDMI |
| Host interface | HDMI |
| Bandwidth | 18 Gbit/s |
| Audio support | Yes |
| Colour | |
| Product colour | Black |
| Other features | |
| Converter type | Active video converter |
| Housing material | Metal |
| Extended display identification data (EDID) | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Reclocking | Yes |
| LED indicators | Power |
| Type | HDCP converter 2.2 to 1.2 |
| Dimensions (WxDxH) | 45.5 x 75 x 12 mm |
| Features | |
| Converter type | Active video converter |
| Housing material | Metal |
| Extended display identification data (EDID) | Yes |
| Plug and Play | Yes |
| Product colour | Black |
| Reclocking | Yes |
| LED indicators | Power |
| Internal | No |
| Video | |
| HDCP | Yes |
| Supported video modes | 2160p |
| Bandwidth | 18 Gbit/s |
| Audio | |
| Audio support | Yes |
| Ports & interfaces | |
| Video out | HDMI |
| Video in | HDMI |
| Output interface | HDMI |
| Host interface | HDMI |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 0.5 W |
| Operating voltage | 5 V |
| Operating current | 1 A |
| Input voltage | 110 - 230 V |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 63 mm |
| Height | 33 mm |
| Weight | 50 g |
| Packaging data | |
| AC adapter included | Yes |
| Quantity | 1 |
| Package width | 88 mm |
| Package depth | 63 mm |
| Package height | 33 mm |
| Package weight | 122 g |
| Packaging content | |
| AC adapter included | Yes |
| Quantity | 1 |
