SmartRack 4-Post 1U Universal Adjustable Rack-Mount Shelf Kit
Key Features
- Supports UPS systems in 4-post rackmount applications
- Adjustable to any length between 20.5 and 36 inches
- Square hole rack attachment hardware included
- Supports weights up to 150 lbs (68 kgs)
Description

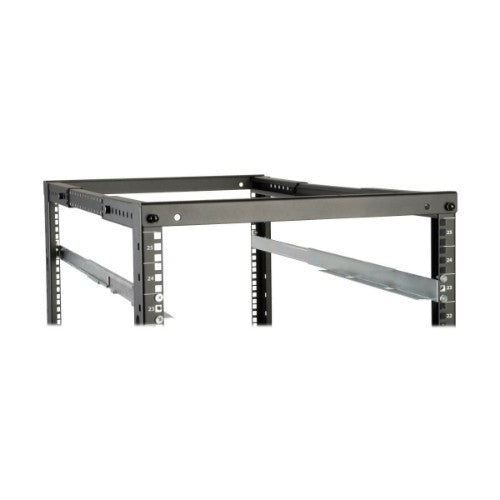

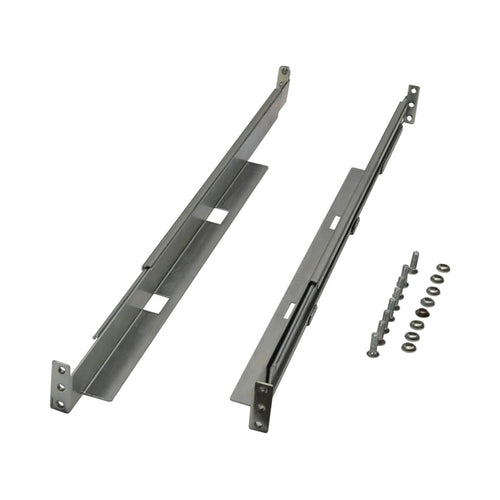

4POSTRAILKIT1U is an adjustable rack-mount shelving system that supports heavy UPS systems, as well as other pieces of networking or power protection equipment. 4-post expandable mounting rails offer front to rear support for equipment with 17.5-inch-wide rectangular chassis. Rails adjust to any setting between 20.5 and 36 inches. Includes mounting hardware compatible with square-hole racks. Supports up to 150 pounds (68 kilograms).
Specifications
| Technical details |
|---|
| Country of origin |
China |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Maximum weight capacity |
68 kg |
| Product colour |
Silver |
| Adjustable |
Yes |
| Weight & dimensions |
|---|
| Weight |
1.32 kg |
| Width |
37.8 mm |
| Depth |
520.7 mm |
| Height |
43.7 mm |
| Packaging data |
|---|
| Package width |
55.9 mm |
| Package height |
50.8 mm |
| Package depth |
538.5 mm |
| Package weight |
1.32 kg |
| Logistics data |
|---|
| Master (outer) case width |
284.5 mm |
| Master (outer) case length |
546.1 mm |
| Master (outer) case height |
137.2 mm |
| Master (outer) case gross weight |
13.8 kg |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) |
10037332173314 |
| Harmonized System (HS) code |
7326.90.8688 |
