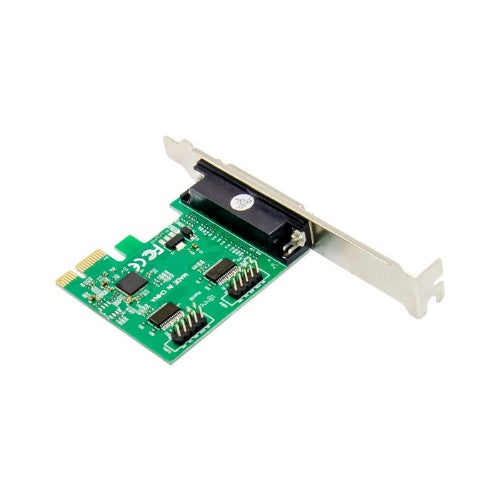

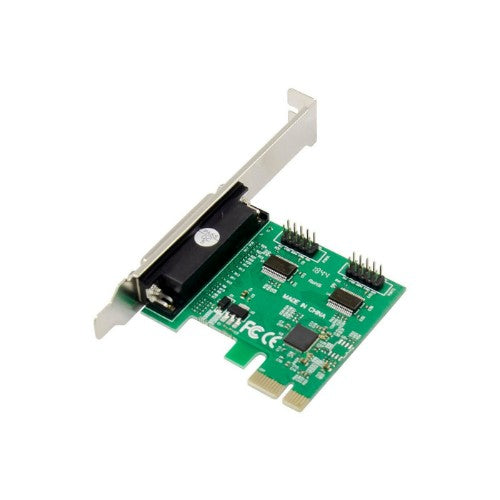

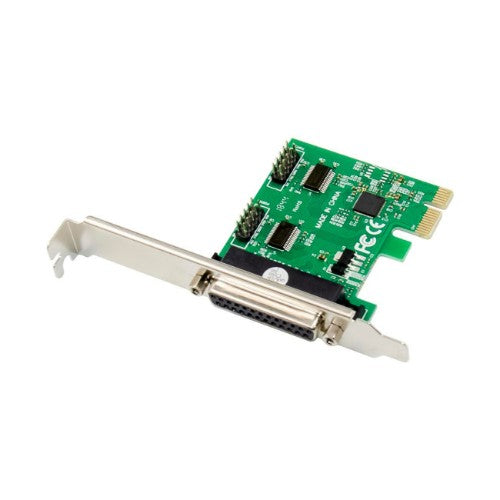

PCIe ASIX MCS9901 1-Port Parallel 2-Port Serial card
Key Features
- Compliant with PCI Express Base Specification 1.0a
- Supports 2 x UART serial port
- Built-in 16C450/550 compatible UART
- On chip 256 byte FIFOs in transmit and receive path of each serial port
- Serial data transfer rate up to 230400bps
- Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)
- Parallel data transfer rate up to 1.5Mbps
Description

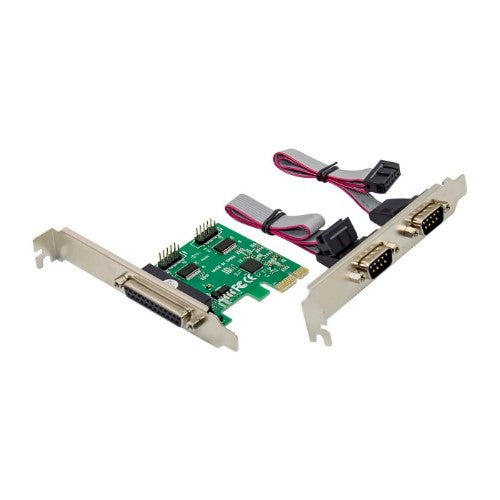

MC-PCIE-MCS1P2S single Port parallel DB25 and dual Port Serial DB9 PCI-e x1 card can be installed in to any system with a free PCI Express slot, allowing you to connect Peripherals and Serial to any computer system. Relying on a native single-chip design, this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Output interface |
Parallel |
| Serial ports quantity |
2 |
| Parallel ports quantity |
1 |
| Host interface |
PCIe |
| Technical details |
|---|
| Chipset |
MSC9901 |
| Performance |
|---|
| Chipset |
MSC9901 |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| Internal |
Yes |
| Features |
|---|
| Chipset |
MSC9901 |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Weight |
100 g |
| Package width |
146 mm |
| Package depth |
111 mm |
| Package height |
28 mm |
| Package weight |
102 g |
| Packaging data |
|---|
| Package width |
146 mm |
| Package depth |
111 mm |
| Package height |
28 mm |
| Package weight |
102 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
MSC9901 |
