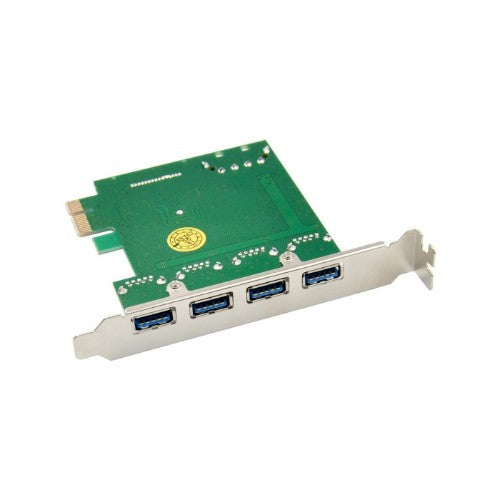

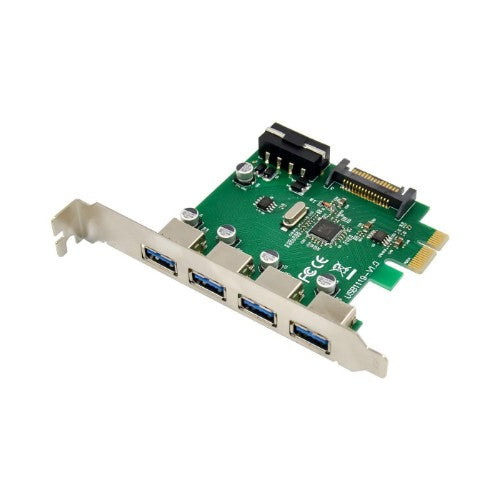

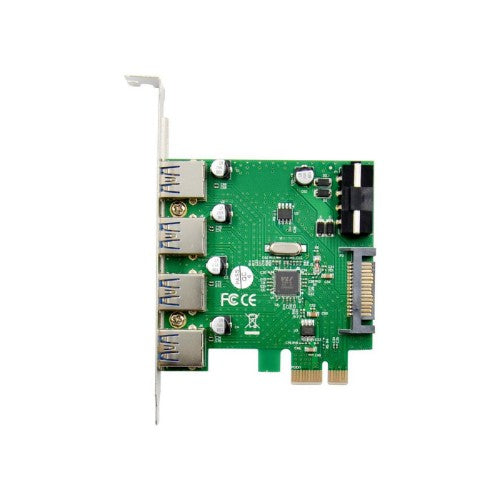

Microconnect MC-USB3.0-F3B1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)

PCIe USB3.0 3+1 Ports Expansion Card VL805

Key Features

• Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant to Universal Serial Bus 2.0 Specifications
• Compliant to extensible Host Controller Interface Specification Revision 1.0
• Compliant with PCI Express base specification 2.0
• Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS)
• High-Speed (HS),Full-Speed (FS) and Low-Speed (LS)
• Max. 5V/900mA power output to each USB 3.0 Port
• 4-pin power connector for extra power
• Fully plug ,play and hot plug compatible

Description

This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.
System Requirements
Linux/ Win7/ Win8/ Win8.1/ Win10 32bit or 64 bit / Windows® XP/ Vista

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Host interface	PCIe
Technical details
Bandwidth	5 Gbit/s
Performance
Bandwidth	5 Gbit/s
Harmonized System (HS) code	84733020
Design
Internal	Yes
Features
Bandwidth	5 Gbit/s
Harmonized System (HS) code	84733020
Power
Output voltage	5 V
Output current	0.9 A
Operational conditions
Operating temperature (T-T)	5 - 35 °C
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Width	80 mm
Depth	70 mm
Weight	90 g
Package width	174 mm
Package depth	130 mm
Package height	34 mm
Package weight	94 g
Packaging data
Drivers included	Yes
Package width	174 mm
Package depth	130 mm
Package height	34 mm
Package weight	94 g
Quantity	1
Logistics data
Harmonized System (HS) code	84733020
Packaging content
Drivers included	Yes
Quantity	1
