CipherLab Operating System (cOS), 2 MB flash, LCD 128 × 64, white LED backlight, Li-ion battery: 3.7V 1800 mAh, 170 x 77 x 47 mm, 290 g, Batch, 2MB SRAM
Description

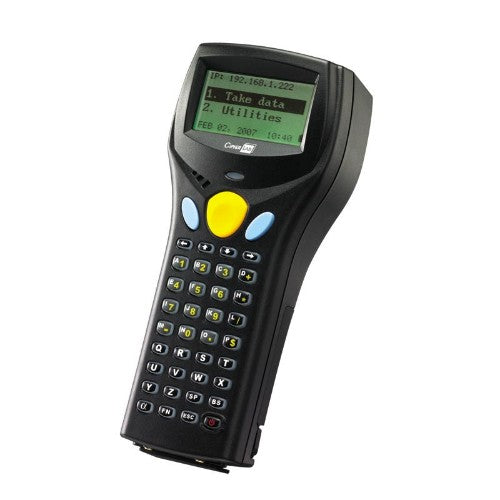

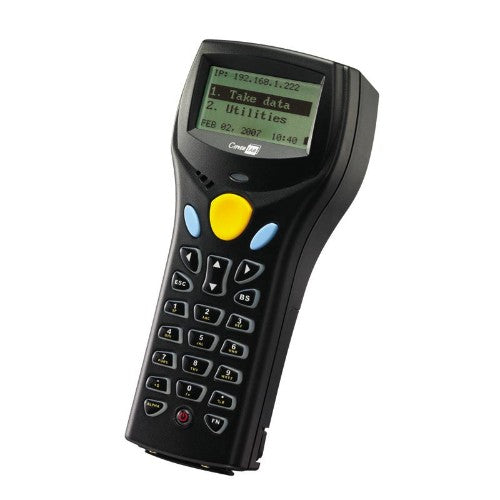

For a rugged workhorse packed with features and value, the 8300 series is the best handheld mobile computer to carry with for the professionals in retail, healthcare, and warehousing. The 8300 series combines barcode reader options with accurate data capture, optional RFID, robust computing, and software flexibility in a cost-competitive package that will accelerate material movement and boost worker efficiency. Wireless LAN models support real-time inventory control by instantly connecting with your servers through your wireless network. There's nothing like the 8300 series to put accuracy, efficiency, and value in your hand.
Specifications
| Display |
|---|
| Display number of colours |
Monochrome |
| Display |
LCD |
| Touchscreen |
No |
| Display resolution |
128 x 64 pixels |
| Memory |
|---|
| Internal memory |
0.002 GB |
| Compatible memory cards |
Not supported |
| Flash memory |
0.002 GB |
| Processor |
|---|
| Built-in processor |
Yes |
| Network |
|---|
| Operating frequency |
13.56 MHz |
| Data network |
Not supported |
| Bluetooth |
No |
| Wi-Fi |
No |
| GPS Performance |
|---|
| GPS (satellite) |
No |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| RS-232 input ports |
1 |
| Performance |
|---|
| RFID reader |
Yes |
| Barcode reader |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Phone function |
No |
| Vibrating alert |
Yes |
| Certification |
BSMI, CE, C-Tick, FCC, IC, KCC |
| Software |
|---|
| Operating system installed |
CipherLab Operating System (cOS) |
| Bundled software |
FORGE Application Generator, including data
transmission OCX, STREAM Wireless Studio, MIRROR Terminal Emulator |
| Power |
|---|
| Battery voltage |
3.7 V |
| Battery type |
Rechargeable |
| Battery capacity |
1800 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery life (max) |
270 h |
| Weight & dimensions |
|---|
| Width |
170 mm |
| Depth |
77 mm |
| Height |
47 mm |
| Weight |
290 g |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 60 °C |
| Packaging content |
|---|
| Cables included |
RS-232 |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Data transmission |
|---|
| Data network |
Not supported |
| Bluetooth |
No |
| Technical details |
|---|
| RFID reader |
Yes |
| Barcode reader |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Phone function |
No |
| Vibrating alert |
Yes |
| Certification |
BSMI, CE, C-Tick, FCC, IC, KCC |
| Cables included |
RS-232 |
| Harmonized System (HS) code |
84713000 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84713000 |
