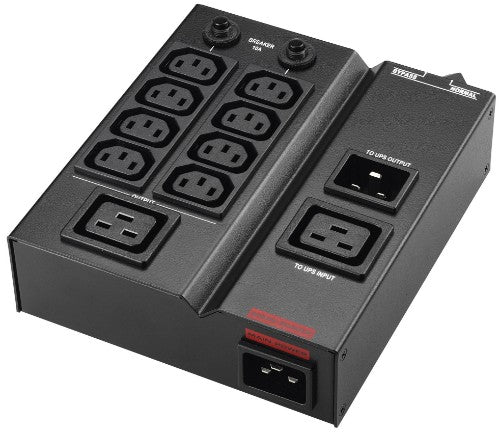

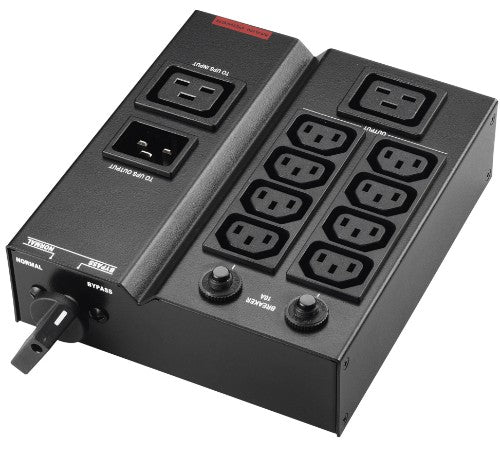

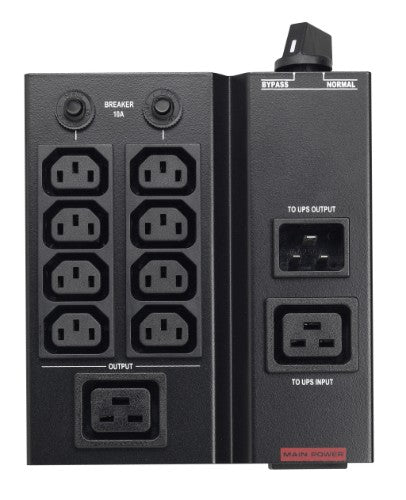

MBS/PDU IEC 1-3kVA, 16 A, 208/220/230/240V, 1.3 kg, black
Description
MBS is a module used as an external Maintenance Bypass Switch to provide continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. It also serves as a PDU (Power Distribution Unit) offering several outputs to be used by various loads.
Specifications
| Design |
|---|
| Mounting |
Horizontal/Vertical |
| Product colour |
Black |
| Ports & interfaces |
|---|
| AC outlets quantity |
9 AC outlet(s) |
| Power |
|---|
| Nominal input voltage |
208-240 V |
| Maximum current |
16 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
160 x 180 x 50 mm |
| Weight |
1.3 kg |
| Width |
160 mm |
| Depth |
180 mm |
| Height |
50 mm |
| Package weight |
1.5 kg |
| Packaging data |
|---|
| Package weight |
1.5 kg |
