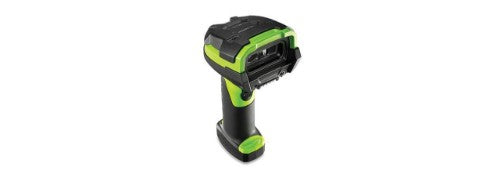

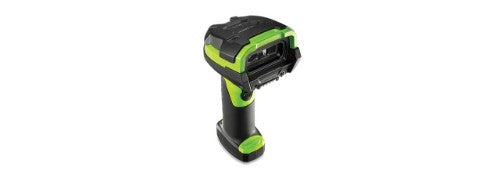

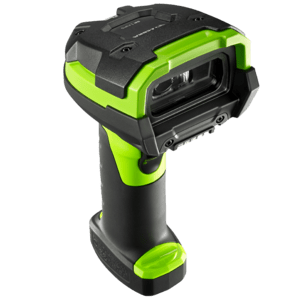

Zebra LI3678-SR Handheld bar code reader 1D Black, Green

LI3678, 1D, Standard Range, BT

Description

Rugged, cordless

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Optical sensor resolution	1500 pixels
Yaw reading angle	-45 - 45°
Wavelength	617 nm
Tilt reading angle	-65 - 65°
Scanner type	1D
Pitch reading angle	-65 - 65°
Ports & interfaces
Wireless range	100 m
Connectivity technology	Wired & Wireless
Bluetooth version	4.0
Bluetooth Low Energy (BLE)	Yes
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
Programming function	Yes
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Design
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Power
Power source type	Battery
Number of reads per charge	70000
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh
Weight & dimensions
Width	142 mm
Depth	76 mm
Height	185 mm
Weight	385 g
Technical details
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Programming function	Yes
Harmonized System (HS) code	84716070
Compliance certificates	RoHS
Packaging data
Cables included	USB
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Cables included	USB
Logistics data
Harmonized System (HS) code	84716070
