Description

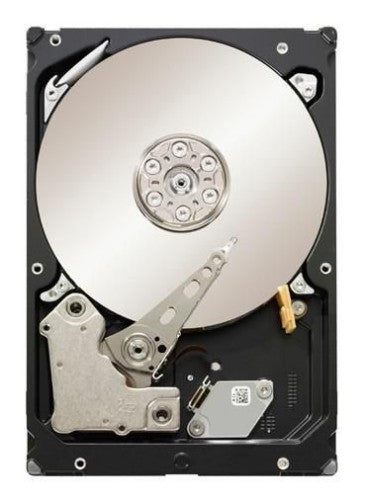

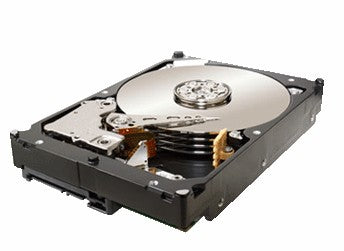

Constellation ES 7200.1 1TB, SATA II, 7200 RPM, 32MB, 3.5"
With its lowest power consumption and highest temperature tolerance, it optimizes chassis performance in tiered storage solutions. The only drive offering a choice of traditional 3Gb/s enterprise SATA interface for seamless enterprise integration or the industry leading 6Gb/s SAS enterprise interface for a more reliable, scalable and sustainable high performance enterprise solution.
Description
Constellation™ ES is the fourth generation 3.5-inch drive for enterprise 7200-RPM environments enabling cost-effective, highly efficient enterprise storage with highest capacities, best-in-class reliability, leading 6Gb/s performance, optimized power and cooling and government grade security backed by Seagate’s Enterprise service and support.With its lowest power consumption and highest temperature tolerance, it optimizes chassis performance in tiered storage solutions. The only drive offering a choice of traditional 3Gb/s enterprise SATA interface for seamless enterprise integration or the industry leading 6Gb/s SAS enterprise interface for a more reliable, scalable and sustainable high performance enterprise solution.
Specifications
| Hard drive | |
|---|---|
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 1200000 h |
| Start/stop cycles | 300000 |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 1 TB |
| Features | |
| Type | HDD |
| Interface | Serial ATA |
| Write seek time | 9.5 ms |
| Read seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) | 1200000 h |
| Start/stop cycles | 300000 |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 1 TB |
| Storage drive buffer size | 32 MB |
| Power | |
| Operating voltage | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 70 G |
| Non-operating shock | 300 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | Serial ATA |
| HDD transfer rate | 140 Mbit/s |
| Power requirements | +12V, +5V |
| Mean time between failures (MTBF) | 1200000 h |
| Internal | Yes |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 640 g |
| Height | 26.1 mm |
| Depth | 147 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | Serial ATA |
| HDD transfer rate | 140 Mbit/s |
| Power requirements | +12V, +5V |
| Internal | Yes |
