Description
StarTech.com M2 PCIe SSD Adapter - x4 PCIe 3.0 NVMe / AHCI / NGFF / M-Key - Low Profile and Full Profile - SSD PCIe M.2 Adapter (PEX4M2E1)

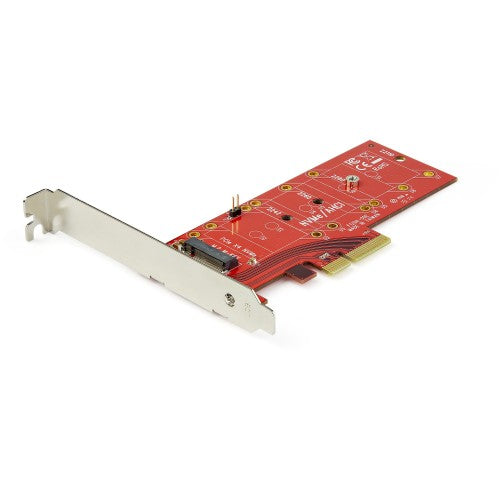

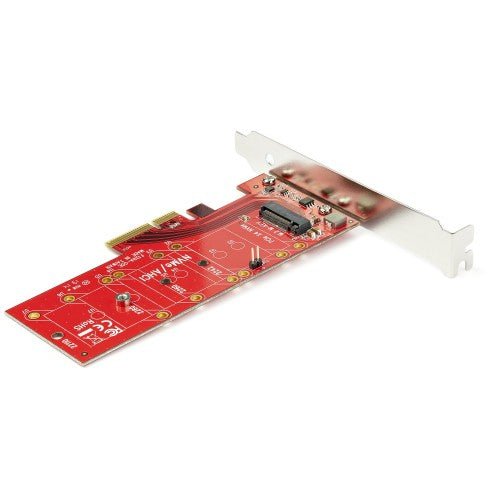

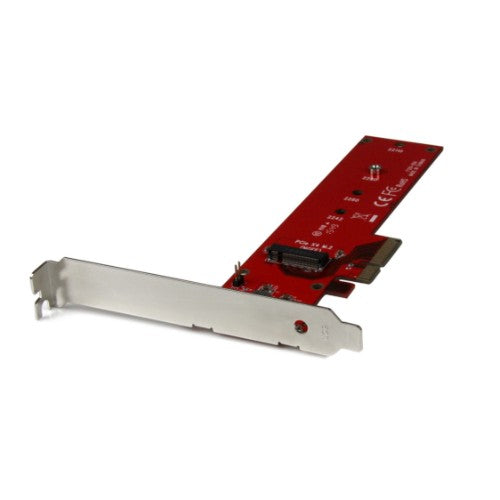

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs

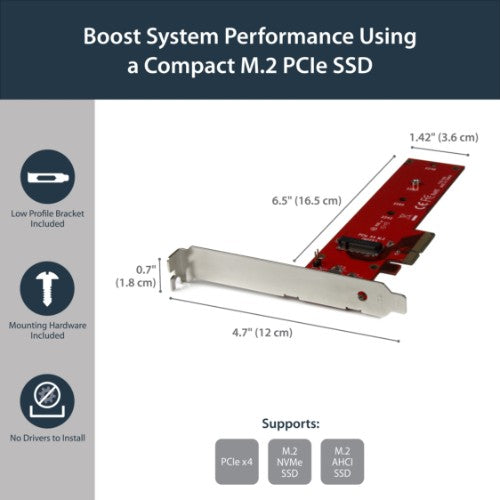

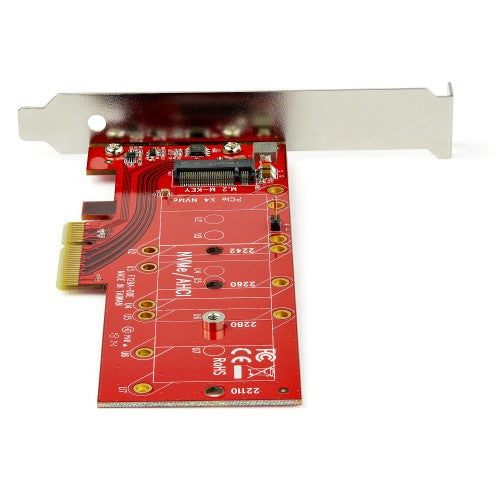

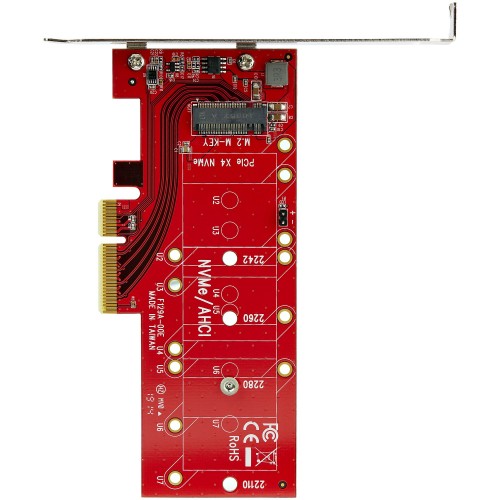

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install

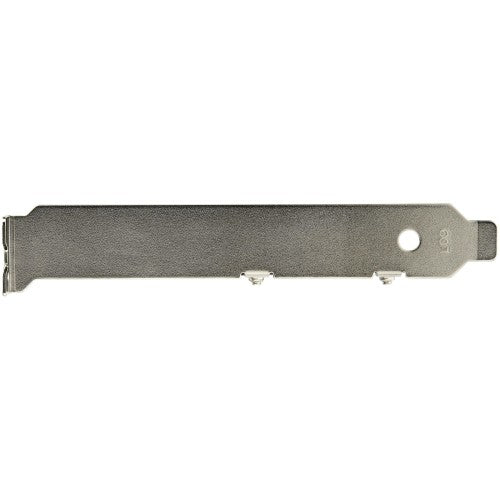

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- Boost system speed and performance by adding a PCIe M.2 SSD to your PC
- Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives
- Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
- Fast and easy setup with native OS support
- Installs into x4, x8 or x16 PCIe slots
- Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers
Description
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data accessGet ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | M.2 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 3.0 |
| Technical details | |
| Plug and Play | Yes |
| Data transfer rate (max) | 8 Gbit/s |
| Compliance certificates | CE, RoHS |
| Performance | |
| Hot-swap | No |
| Plug and Play | Yes |
| Data transfer rate (max) | 8 Gbit/s |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Red |
| Design | |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Red |
| LED indicators | Yes |
| Features | |
| Plug and Play | Yes |
| Data transfer rate (max) | 8 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 179 mm |
| Height | 184 mm |
| Weight | 47 g |
| Package width | 219 mm |
| Package depth | 159 mm |
| Package height | 46 mm |
| Package weight | 151 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 219 mm |
| Package depth | 159 mm |
| Package height | 46 mm |
| Package weight | 151 g |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733020 |

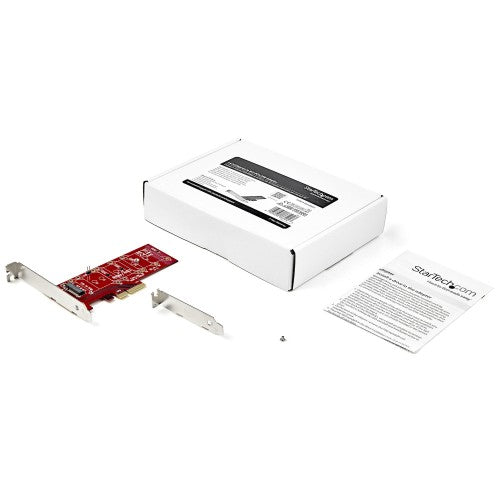

| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
