Description

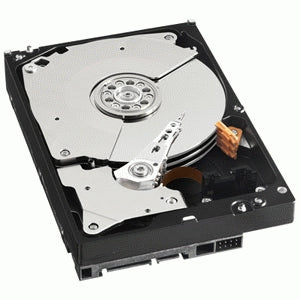

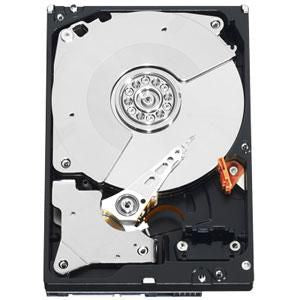

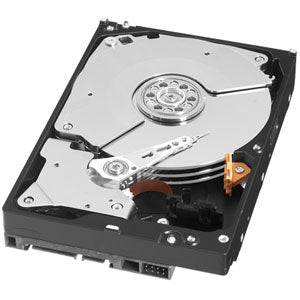

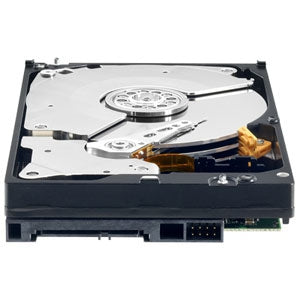

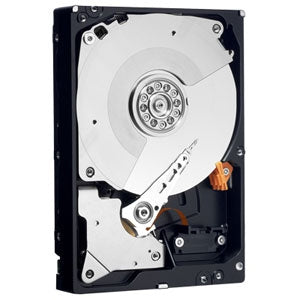

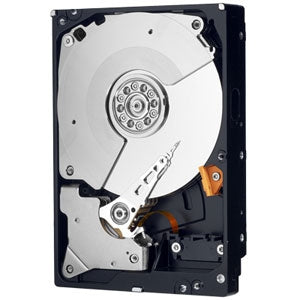

1TB WD RE4, 3.5" SATA II, 64MB Cache, 7200RPM, 730g
With a combination of 64 MB cache, dual processors and dual stage actuation WD RE4 drives deliver lightning-fast performance in demanding server and storage applications.
24x7 reliability.
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
WD RE4 enterprise SATA hard drives combine 64 MB cache with dual processors and dual stage actuation for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
Key Features
Massive capacity - WD RE4 Enterprise SATA drives are available with up to 2 TB's of cavernous capacity.
Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB model only)
Dual processor - With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family.
StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
RAFF - Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
IntelliSeek - Calculates optimum seek speeds to lower unnecessary power consumption, noise, and vibration. View demo >
Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Third generation dynamic fly height - Each read-write head's fly height is adjusted in real time for optimum reliability.
Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Perpendicular Magnetic Recording (PMR) - WD RE4 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin.
Active Power Save - Delivers best-in-class power consumption through advanced WD firmware that conserves power in active seek modes without degrading performance.
Description
High-performance technology.With a combination of 64 MB cache, dual processors and dual stage actuation WD RE4 drives deliver lightning-fast performance in demanding server and storage applications.
24x7 reliability.
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
WD RE4 enterprise SATA hard drives combine 64 MB cache with dual processors and dual stage actuation for lightning-fast performance in demanding server and storage applications. Technologically advanced acoustics minimize noise. Cool drive operation and enhanced reliability features help protect the drive and the data stored on it.
Key Features
Massive capacity - WD RE4 Enterprise SATA drives are available with up to 2 TB's of cavernous capacity.
Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB model only)
Dual processor - With double the processing power, WD RE4 boasts the highest performance of any drive in the WD RE family.
StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
RAFF - Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
IntelliSeek - Calculates optimum seek speeds to lower unnecessary power consumption, noise, and vibration. View demo >
Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER) - Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Third generation dynamic fly height - Each read-write head's fly height is adjusted in real time for optimum reliability.
Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Perpendicular Magnetic Recording (PMR) - WD RE4 drives utilize PMR technology to achieve even greater areal density, reliability, and design margin.
Active Power Save - Delivers best-in-class power consumption through advanced WD firmware that conserves power in active seek modes without degrading performance.
Specifications
| Sound emission | |
|---|---|
| Acoustic pressure emissions | 29 dB |
| Hard drive | |
| Average latency | 4.2 ms |
| Bytes per sector | 512 |
| HDD number of heads | 2 |
| Mean time between failures (MTBF) | 1200000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 500 GB |
| Features | |
| Interface | Serial ATA II |
| Average latency | 4.2 ms |
| Bytes per sector | 512 |
| HDD number of heads | 2 |
| Mean time between failures (MTBF) | 1200000 h |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| HDD capacity | 500 GB |
| Storage drive buffer size | 64 MB |
| Power | |
| Power consumption (standby) | 0.7 W |
| Power consumption (write) | 7.9 W |
| Power consumption (read) | 7.9 W |
| Power consumption (idle) | 5.9 W |
| Operating voltage | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 65 G |
| Non-operating shock | 300 G |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| FireWire 800 | No |
| FireWire 400 | No |
| Network | |
| Ethernet LAN | No |
| Technical details | |
| Interface | Serial ATA II |
| Mean time between failures (MTBF) | 1200000 h |
| USB powered | No |
| Operating temperature (T-T) | 32 - 140 °F |
| Fibre Channel | No |
| Drive device, transfer rate | 128 MB/s |
| Internal | Yes |
| Cartridge load/Unload cycles | 600000 |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 730 g |
| Height | 25.4 mm |
| Depth | 147 mm |
| Weight (imperial) | 0.73 kg (1.61 lbs) |
| Dimensions (W x D x H) (imperial) | 101.6 x 144.8 x 25.9 mm (4 x 5.7 x 1.02") |
| Other features | |
| Interface | Serial ATA II |
| Ethernet LAN | No |
| USB powered | No |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Operating temperature (T-T) | 32 - 140 °F |
| FireWire 800 | No |
| FireWire 400 | No |
| Fibre Channel | No |
| Drive device, transfer rate | 128 MB/s |
| Internal | Yes |
| Acoustic pressure emissions | 29 dB |
| Weight (imperial) | 0.73 kg (1.61 lbs) |
| Dimensions (W x D x H) (imperial) | 101.6 x 144.8 x 25.9 mm (4 x 5.7 x 1.02") |
| Cartridge load/Unload cycles | 600000 |
