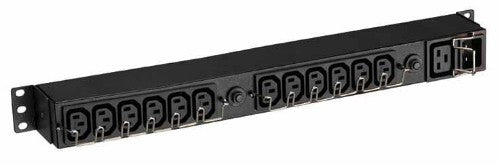

FlexPDU, 12 x IEC 10A & 1 x IEC 16 A Outlets, 220 - 240 V, 1U
Description
These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
Specifications
| Design |
|---|
| Type |
Single-phase |
| PDU types |
Basic |
| Mounting |
Horizontal/Vertical |
| Product colour |
Black |
| Certification |
CE |
| Form factor |
Rackmount |
| Rack mounting |
Yes |
| Cable colour |
Black |
| Rack capacity |
1U |
| Ports & interfaces |
|---|
| AC outlets quantity |
13 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| Output connections |
12 x C13 & 1 x C19 |
| Features |
|---|
| Certification |
CE |
| Power |
|---|
| Maximum power |
3000 W |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Maximum current |
13 A |
| Maximum input current per phase |
13 A |
| Load capacity |
3000 VA |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
CE |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
1.7 kg |
| Size (imperial) |
48.3 cm (19") |
| Width |
439 mm |
| Depth |
58.5 mm |
| Height |
43.4 mm |
| Package width |
180 mm |
| Package depth |
448 mm |
| Package height |
58 mm |
| Package weight |
9.5 kg |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Packaging data |
|---|
| Package width |
180 mm |
| Package depth |
448 mm |
| Package height |
58 mm |
| Package weight |
9.5 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS |
