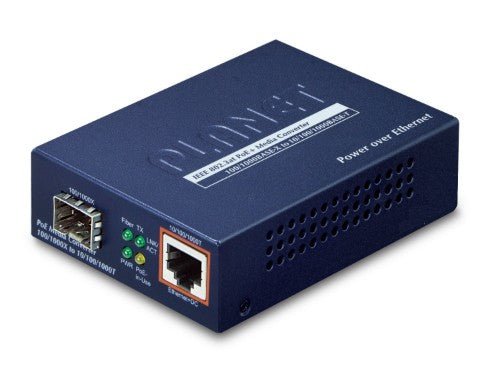

100/1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter
Key Features
- Interface
- 1 RJ45 interface
- 1-Port Data + Power output
- 1 fiber optic port
- GTP-802: SC Fiber Interface
- GTP-802S: SC Fiber Interface
- GTP-805A: LC Fiber Interface
- DC 52V power input socket
- PoE
- Complies with IEEE 802.3at Power over Ethernet Plus standard, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Provides DC 52V power over RJ45 Ethernet cable to devices with Ethernet port
- Supports PoE Power up to 30 watts for PoE port
- Auto detects IEEE 802.3at/IEEE 802.3af PoE equipment, protecting the devices from being damaged by incorrect installation
- Remote power feeding up to 100m
- IEEE 802.3at/IEEE 802.3af splitter devices compatibility
- Hardware
- Metal case
- LED indicators
- Power LED
- PoE-in-use
- Fiber LNK/ACT
- TP LNK/ACT
- DIP switch: LFP (Link Fault Passthrough) mode selection
- 9K maximum frame size supported
- Standard Compliance
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- IEEE 802.3af Power over Ethernet standard
- IEEE 802.3at Power over Ethernet Plus Standard
- FCC Part 15 Class A, CE
Description
As more and more PoE PD devices need higher power input and long-distance transmission,
PLANET has released a new Power over Ethernet Media Converter, GTP-80x series. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
- IEEE 802.3at / IEEE 802.3af PoE standard compliance
- Supports a maximum of 30W output power
- 10/100/1000Mbps duplex mode supports on 1000Base-T port
- 1000Mbps Fiber-Optic support
The GTP-80x series is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GTP-80x High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need for installing extra power outlets and electrical cabling.
Fiber-Optic Link Capability Extends the Range of Network Deployment
The maximum distance between the PoE PSE and PD is 100 meters. To extend the network device deployment range, the GTP-80x is integrated with Fiber interface. The GTP-80x PoE+ Media Converter is used to convert optical Ethernet signal to electrical Ethernet signal that allows two types of segments to connect easily, efficiently and inexpensively. It can convert 10/100/1000Base-T signal to 1000Base-X one and provide the diverse options of fiber connecting types to meet different network applications.
The GTP-80x series and its fiber connecting type includes:
- GTP-802:SC Fiber Interface with Multi-mode, Distance up to 220m and 550m
- GTP-802S:SC Fiber Interface with Single-mode, Distance up to 10km
- GTP-805A:LC Fiber Interface, supports Multi / Single Mode SFP module, Distance up to 120km max. (Varting on SFP module)
With the long Fiber distance support, it still sustains the transmission performance as high as 1000Mbps. It works in high performance Store and Forward mechanism, and also can prevent packet loss with IEEE 802.3x Flow Control (Full-Duplex) and the LFP (Link Fault Pass through function) (LLCF/LLR) with the DIP Switch design. Furthermore, it can immediately alarm the administrators the issue from the link media and provide efficient solution to monitoring the network power usage.
Quick and Easy High Power PoE Network Deployment
The GTP-80x series provides 52V DC power over Ethernet cables -- just insert DC voltage into Cat.5/5e/6 cable, allowing the cable between the PoE splitters (POE-151S / POE-152S / POE-162S) to transfer data and power simultaneously for up to 100 meters. Then it will spilt the digital data and the power into two selectable DC outputs (5V DC / 12V DC). Thus, it reduces cables and the dedicated electrical outlets on the wall, ceiling or any unreachable place. Most of all, it also eliminates the time for installation. The high Power over Ethernet solution frees the security IP camera and wireless AP deployment from restrictions of power outlet locations.
Specifications
| Network |
|---|
| Fiber optic connector |
SFP |
| Converter input interface |
1000Base-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Converter output interface |
1000Base-X |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Housing material |
Metal |
| Internal |
No |
| Harmonized System (HS) code |
85176990 |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |
| Indication |
|---|
| LED indicators |
Yes |
| Design |
|---|
| Housing material |
Metal |
| LED indicators |
Yes |
| Product colour |
Blue |
| Certification |
FCC Part 15 Class A, CE |
| Internal |
No |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
30 W |
| Colour |
|---|
| Product colour |
Blue |
| Weight & dimensions |
|---|
| Width |
96 mm |
| Depth |
26 mm |
| Weight |
210 g |
| Height |
70 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Certification |
FCC Part 15 Class A, CE |
