3.7", LED, 10/100/1000 Base-T Ethernet , 16 free programmable feature keys with LED, Speakerphone
Key Features
- Tilt able graphical display, 3,7" (240*120 pixel), monochrome
- LED backlight (white)
- Notification LED
- 4 context sensitive soft keys with LED
- 2 fixed feature keys (Menu/Out-of-office)
- 4-way navigator, plus OK-key
- 3 audio keys (Mute/Speaker/Headset) with LED
- Volume control +/-
- Open listening / Handsfree talking (Full-duplex)
- Headset port (DHSG/EHS)
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3af Power over Ethernet, class 2
- Key Module KM400 optional
Description

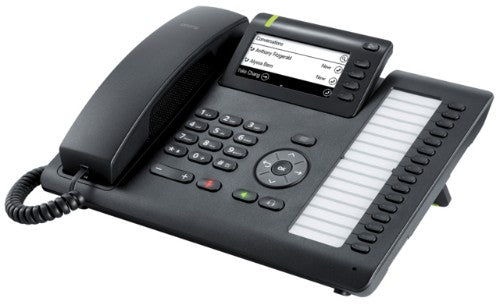

The CP400 is the midrange phone for the budget-conscious, professional user. Even the basic unit has 16 programmable function keys with tri-colored status indicator. It can be expanded with up to two Key Modules KM400 with 16 function keys. The paper label reduces the cost and meets customers request for many programmable keys. The power saving design allows the connection of two key modules within the PoE Class 2.
Specifications
| Features |
|---|
| Number of programmable keys |
16 |
| Operating system installed |
Linux |
| Handset type |
Wired handset |
| Volume control |
Buttons |
| Headset connectivity |
DHSG/EHS |
| Product colour |
Black |
| Base station |
Yes |
| Technical details |
|---|
| Number of programmable keys |
16 |
| Operating system installed |
Linux |
| Handset type |
Wired handset |
| Volume control |
Buttons |
| Speakerphone |
Yes |
| Headset connectivity |
DHSG/EHS |
| Base station |
Yes |
| Harmonized System (HS) code |
85171800 |
| Security |
|---|
| Security algorithms |
128-bit AES, 256-bit AES, HTTPS |
| Design |
|---|
| Product type |
IP Phone |
| Handset type |
Wired handset |
| Product colour |
Black |
| Performance |
|---|
| Operating system installed |
Linux |
| Phone features |
|---|
| Phonebook capacity |
1000 entries |
| Full duplex |
Yes |
| Management features |
|---|
| Number of programmable keys |
16 |
| Volume control |
Buttons |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
240 x 120 pixels |
| Display diagonal |
9.4 cm (3.7") |
| Backlight display |
Yes |
| Camera |
|---|
| Front camera |
No |
| Audio |
|---|
| Ringer type |
MP3 |
| Voice codecs |
G.711, G.722, G.729, G.729A, G.729B |
| Speakerphone |
Yes |
| Echo cancellation |
Yes |
| Network |
|---|
| VoIP protocols |
SIP, HFA |
| Networking standards |
IEEE 802.3az |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Supported network protocols |
IP v4/v6 (SIP) IPv4 (HFA), DHCP, |
| Security algorithms |
128-bit AES, 256-bit AES, HTTPS |
| Ethernet LAN |
Yes |
| Bluetooth |
No |
| Colour |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| Headset connectivity |
DHSG/EHS |
| Certificates |
|---|
| Safety |
CISPR22 Class B, CISPR 24 EN55032 Class B, EN55024 FCC Part 15 (CFR 47) Class B |
| Certification |
CE
NRTL
FCC Part 68 (CFR 47) / CS-03 Part V |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
5 - 70 °C |
| Weight & dimensions |
|---|
| Width |
283 mm |
| Depth |
165 mm |
| Height |
143 mm |
| Weight |
1.2 kg |
| Packaging content |
|---|
| Base station |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
