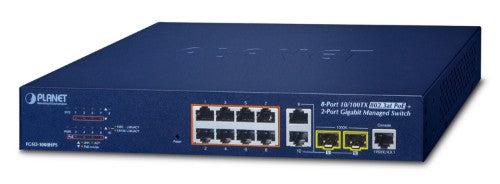

PLANET FGSD-1008HPS network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) Blue

8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch

Key Features

• Physical Port
• 8 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
• 2 10/100/1000BASE-T Gigabit RJ45 copper ports
• 2 100/1000BASE-X mini-GBIC/SFP slots, shared with port-9 to port-10
• Reset button for system factory default
• Switching
• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Power over Ethernet
• Complies with IEEE 802.3at Power over Ethernet Plus
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• 120-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250m via extend mode
• PoE Management
• Per port PoE function enable/disable
• Per Port PoE operation mode selection
• Per PoE port power budget control
• PD classification detection and PoE consumption usage status
• Intelligent PoE features
• PD alive check
• PoE port sequence
• PoE schedule
• Layer 2 Features
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Supports VLAN
• Port-based VLAN, up to 10 VLAN groups
• IEEE 802.1Q tagged VLAN
• Protocol VLAN
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• GVRP
• Voice VLAN
• Supports Spanning Tree Protocol
• STP (IEEE 802.1D Spanning Tree Protocol)
• RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
• MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
• STP BPDU filtering, BPDU Guard
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• 1 LACP group, up to 2 ports per LACP group
• Cisco ether-channel (static trunk)
• 1 trunk group, up to 2 ports per trunk group
• Provides port mirror (many-to-1)
• Loop detection
• Quality of Service
• Ingress/Egress Rate Limit per port bandwidth control
• Storm Control support
• Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
• Traffic classification
• IEEE 802.1p Qos/CoS
• TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Multicast
• Supports IPv4 IGMP snooping v1/ v2 and v3
• Supports IPv6 MLD snooping v1, v2
• Security
• Access Control List
• IPv4/IPv6 IP-based ACL
• MAC-based ACL
• Port-MAC-IP Address Binding
• Port-MAC-IP Port Setting
• Port-MAC-IP Entry Setting
• MAC Address Binding
• Static MAC
• MAC Filtering
• DHCP snooping to filter distrusted DHCP messages
• ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Description

PLANET’s newly-revised FGSD-1008HPS Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more. Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security PLANET FGSD-1008HPS is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSD-1008HPS is equipped with 8 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 8 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 120 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management. Solution for IPv6 Networking With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSD-1008HPS is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network. Built-in Unique PoE Functions for Surveillance Management As a managed PoE Switch for surveillance network, the FGSD-1008HPS features the following intelligent PoE management functions: *PD Alive Check *PoE Port Sequence *PoE Schedule Intelligent Powered Device Alive Check The FGSD-1008HPS can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the FGSD-1008HPS will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden. PoE Port Sequence To prevent all the PoE ports of the FGSD-1008HPS from being active at the same time when the Switch has booted up, the PoE ports of the FGSD-1008HPS can be configured to allow each port to be activated at an interval time. In addition, the “Delay” setting is to delay power feeding on each port when the FGSD-1008HPS has completely booted up. PoE Schedule for Energy Saving Besides being used for IP surveillance, the FGSD-1008HPS is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the FGSD-1008HPS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget. Ethernet Data Transmission Distance Extension In the “Extended” operation mode, the FGSD-1008HPS operates on a per-port basis at 10Mbps duplex operation but can support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable. Robust Layer 2 Features The FGSD-1008HPS can be programmed for advanced switch management functions, such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help discover basic information about neighboring devices in the local broadcastdomain. Other features included are the port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control. Enhanced Security and Traffic Control The FGSD-1008HPS offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or defined typical network applications. The FGSD-1008HPS also provides DHCP Snooping, ARP Inspection and MAC Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are per port MAC/IP address binding and MAC address binding. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity features that virtually need no effort and cost to have included the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and TLS protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Efficient Management For efficient management, the FGSD-1008HPS is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the FGSD-1008HPS offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the FGSD-1008HPS can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the FGSD-1008HPS offers secure remote management by supporting SNMPv3 connections which encrypt the packet content at each session. Flexible and Extendable Uplink Solution The FGSD-1008HPS provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots occupied by the 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers, it can be uplinked to a backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well-suited for applications within the industrial data centers and distributions.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Traffic classification	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Combo SFP ports quantity	2
Fast Ethernet (copper) ports quantity	8
Fiber optic connector	SFP
Network
IGMP snooping	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Tagged VLAN, Port-based VLAN
Data transmission
Number of VLANs	4094
Jumbo frames	16000
Throughput	4.17 Mpps
MAC address table	16000 entries
Switching capacity	5.5 Gbit/s
Store-and-forward	Yes
Number of queues	2
Jumbo frames support	Yes
Optical fiber
Fiber optic connector	SFP
Performance
Auto-negotiation	Yes
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	Blue
Firmware upgradeable	Yes
Security
IGMP snooping	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1 / v2c
Design
Reset button	Yes
On/off switch	Yes
Product colour	Blue
LED indicators	Yes
Number of fans	1 fan(s)
Indication
LED indicators	Yes
Power
Power consumption (max)	121 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Heat dissipation	413 BTU/h
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.5 kg
Logistics data
Harmonized System (HS) code	85176990
