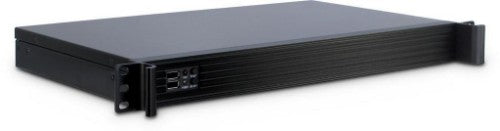

19“ IPC 1U, Mini ITX, 1 x 3,5", 2 x 2,5", 2 x 40mm, 2 x USB 2.0
Description

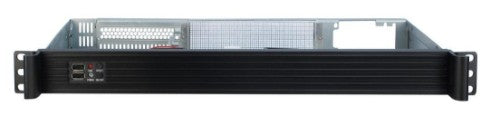

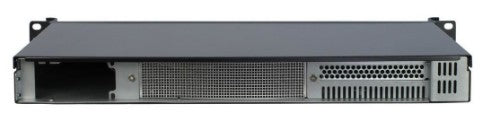

The K-126L is the perfect rack for a small and cost-effective server system. Its compact design and its small installation depth of 250mm for ITX boards allows this case to fit into nearly every rack.

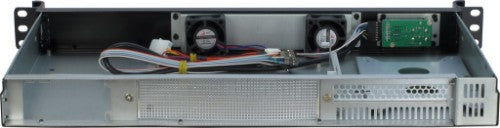

The K-126L provides internal space for optional 1x 3.5" or 2x 2.5" hard disks. Two serial 40mm fans, which are internally mounted behind the front panel, ensure a reliable and optimal cooling.

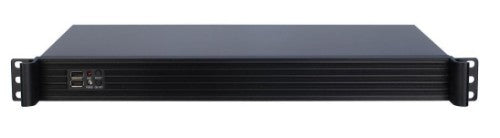

Further you can two USB 2.0 connectors in the front of the case next to the controls.
Specifications
| Technical details |
|---|
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
1 |
| Rack mounting |
Yes |
| Supported motherboard form factors |
Mini-ITX |
| Side window |
No |
| Product colour |
Black |
| Type |
Server |
| Form factor |
Rack |
| Harmonized System (HS) code |
84733080 |
| Material |
|---|
| Material |
Steel |
| Design |
|---|
| Material |
Steel |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
1 |
| Rack mounting |
Yes |
| Supported motherboard form factors |
Mini-ITX |
| Side window |
No |
| Product colour |
Black |
| Type |
Server |
| Form factor |
Rack |
| Rack capacity |
1U |
| Power supply |
|---|
| Power supply included |
No |
| Ports & interfaces |
|---|
| Audio input |
No |
| Audio output |
No |
| USB 2.0 ports quantity |
2 |
| Weight & dimensions |
|---|
| Width |
485 mm |
| Depth |
285 mm |
| Height |
45 mm |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
