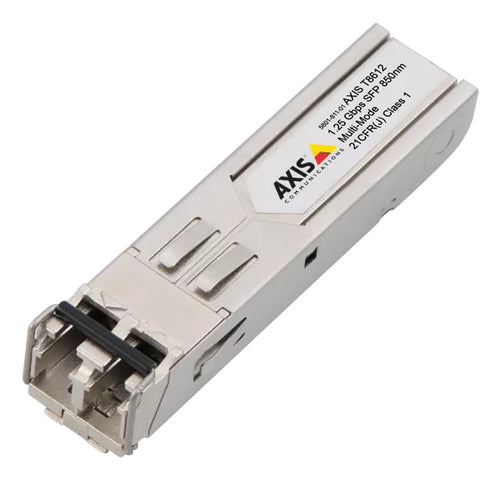

T8612 SFP Module LC.SX
Key Features
- Complies with SFP MSA; Industrial grade – extended temperature range; Link-loss feature; Multimode fiber; Up to 550 m range
Description
AXIS T8612 SFP Module LC.SX is a small form-factor pluggable (SFP) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature range, and it includes link-loss that enable network redundancy. Complying with SFP Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Short wavelength (850 nm) VCSEL laser diodes enable data transmission up to 550 m on a multimode 50/125 μm optical fiber. The module is tested and verified with Axis products.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Interface type |
SFP |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SX |
| Product colour |
Metallic |
| Housing material |
Metal |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Metallic |
| Housing material |
Metal |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 65 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Interface type |
SFP |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
