Description

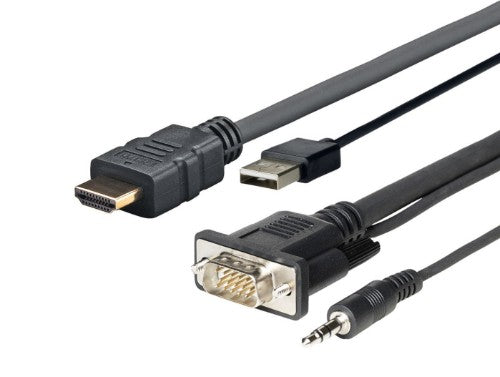

HDMI+VGA+USB+3.5mm - HDMI+VGA+USB+3.5mm, 1.0m, Black
Key Features
- Four cables in one
- Micro VGA housing design
- VGA supporting 1920*1200p@60Hz
- HDMI supporting 4K@60pHz
- USB 2.0 type A male at both ends
- Tinned copper conductor
- Triple shielding in cable and extra shielding in connector
Description
High Performance All-in-One Cable with HDMI, USB 2.0 & Micro VGA + Audio (3.5mm). Designed for use with Laptop and Desktop devices with both HDMI and VGA - THe most commond AV connections.Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Audio connector type | 3.5 mm (1/8") |
| Audio connector | Yes |
| HDMI version | 1.4 |
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | HDMI+VGA+USB+3.5mm |
| Connector 2 | HDMI+VGA (D-Sub) +USB+3.5mm |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| 3D | No |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| HDCP | Yes |
| Plug and Play | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Audio Return Channel (ARC) | Yes |
| Dual Link DVI | No |
| Linux operating systems supported | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Supported audio channels | 7.1 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Dolby technologies | DTS-HD Master Audio |
| Cable colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Cable colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 7.5 mm |
| Weight | 50 g |
| Package width | 187 mm |
| Package depth | 171 mm |
| Package height | 50 mm |
| Package weight | 268 g |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 171 mm |
| Package height | 50 mm |
| Package weight | 268 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Supported resolutions | 4K@60Hz |
| Cable colour | Black |
