Description
StarTech.com Multi-Input to HDMI Converter Switch - DisplayPort, VGA and Dual-HDMI to HDMI Switch - Priority and Automatic Switch - 4K
This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.
Save time with a single switch for DisplayPort, HDMI and VGA
The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers.
Effortless control with automatic or priority switching
The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages.
Focus on your presentation, not boardroom connections
This versatile A/V switch has been designed with the boardroom and classroom in mind, with HDMI, VGA and DisplayPort inputs to support a wide range of devices, and a built-in converter that makes it easy to connect to the room’s display without having to connect additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it so easy to share a projector or other display device between multiple sources.
Impressive DisplayPort and HDMI image quality with 4K support
The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI and DisplayPort source devices, including Blu-ray™ players and DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.
4K video support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p -- 8.29 million pixels versus 2.07 million pixels. It offers a more engaging visual experience for audiences in a wide range of venues, including conference centers, boardrooms, educational facilities, and commercial settings.
When connecting a VGA source, the switch supports high-definition resolutions up to 1920 x 1200. With its exceptional resolution and image quality, this switch is ideal for bringing your digital signage to life.
The HDVGADP2HD is backed by a 2-year StarTech.com warranty and free lifetime support.
Description
This multi-input converter switch lets you connect your DisplayPort (DP), HDMI® and VGA audio/video sources to one HDMI display or projector. The switch enables you to automatically or manually switch between your video sources and features built-in signal conversion, which eliminates the cost and hassle of using additional adapters for the sake of compatibility.This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.
Save time with a single switch for DisplayPort, HDMI and VGA
The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers.
Effortless control with automatic or priority switching
The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages.
Focus on your presentation, not boardroom connections
This versatile A/V switch has been designed with the boardroom and classroom in mind, with HDMI, VGA and DisplayPort inputs to support a wide range of devices, and a built-in converter that makes it easy to connect to the room’s display without having to connect additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it so easy to share a projector or other display device between multiple sources.
Impressive DisplayPort and HDMI image quality with 4K support
The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI and DisplayPort source devices, including Blu-ray™ players and DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.
4K video support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p -- 8.29 million pixels versus 2.07 million pixels. It offers a more engaging visual experience for audiences in a wide range of venues, including conference centers, boardrooms, educational facilities, and commercial settings.
When connecting a VGA source, the switch supports high-definition resolutions up to 1920 x 1200. With its exceptional resolution and image quality, this switch is ideal for bringing your digital signage to life.
The HDVGADP2HD is backed by a 2-year StarTech.com warranty and free lifetime support.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI/VGA/DisplayPort |
| VGA (D-Sub) ports quantity | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 3160 pixels |
| Maximum refresh rate | 60 Hz |
| LED indicators | Status |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power plug type | Type M |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
| Width | 105 mm |
| Height | 41 mm |
| Depth | 161 mm |
| Weight | 615 g |
| Package width | 296 mm |
| Package height | 65 mm |
| Package depth | 211 mm |
| Package weight | 1.2 kg |
| Technical details | |
| Audio output channels | 7.1 channels |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 105 mm |
| Height | 41 mm |
| Depth | 161 mm |
| Product colour | Black |
| Video port type | HDMI/VGA/DisplayPort |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 3160 pixels |
| Maximum refresh rate | 60 Hz |
| LED indicators | Status |
| Remote control included | Yes |
| Audio support | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 296 mm |
| Package height | 65 mm |
| Package depth | 211 mm |
| Package weight | 1.2 kg |

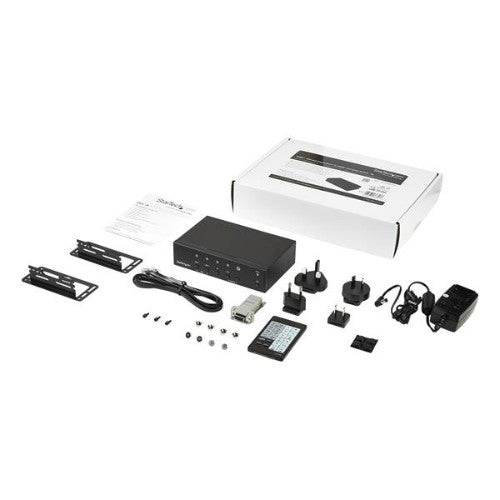

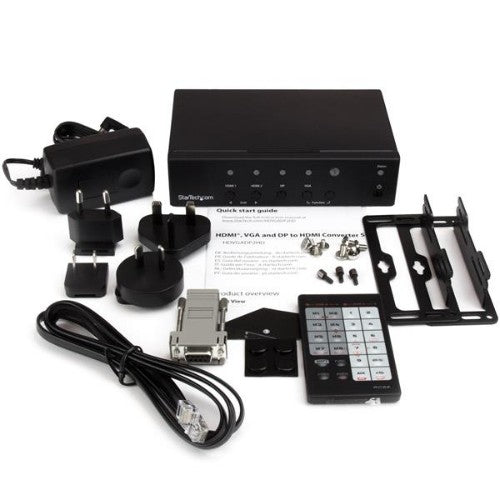

| Packaging content | |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Plug adapter type | NA, EU, UK, AU |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | Phone (RJ-11) |
| AC adapter included | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
