Description

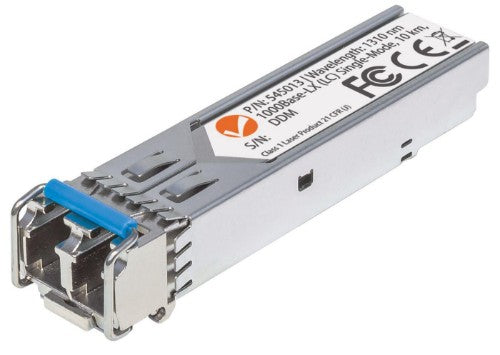

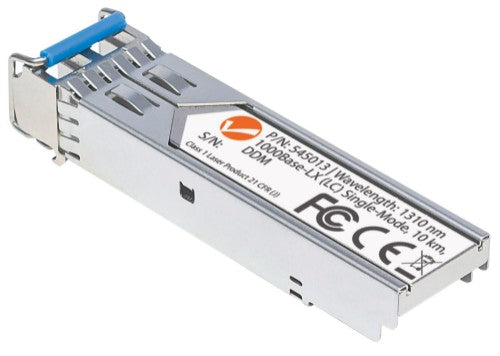

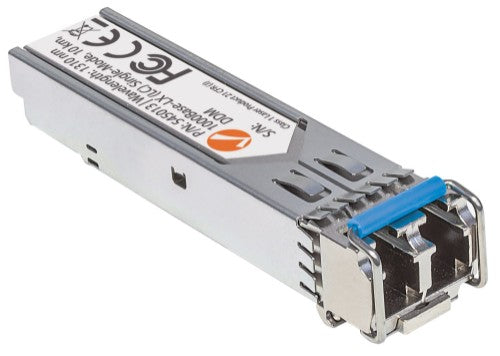

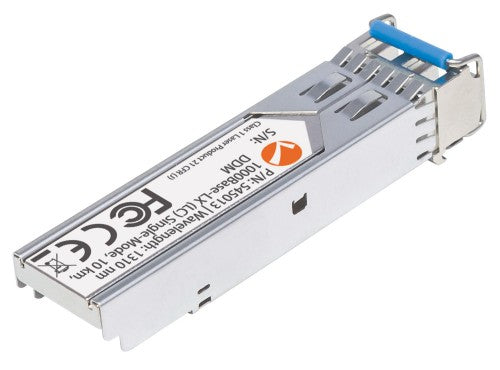

Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
Key Features
- Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
- Data transfer rate: 1000 Mbps
- One 1000Base-LX single-mode Fibre LC duplex port
- Fibre distance support: up to 10 km (6.2 mi.)
- Wavelength: 1310 nm
- Compliant with the SFP Multi-Source Agreement (MSA)
- Compatible with the Cisco GLC-LH-SM transceiver
- SFP standard form factor
- Supports digital diagnostics monitoring (DDM)
- Low EMI due to fully metallic housing
- Up to 1.25 Gbps bi-directional communication
- Supports hot-plugging
- Three-Year Warranty
Description
Gigabit Fibre SFP Optical Transceiver Module _x000D__x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Link budget | 14 dB |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Certification | FCC Class A, CE Mark |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | FCC Class A, CE Mark |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Gigabit Ethernet |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 18 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Duplex system | Full |
| Ethernet LAN | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
