Description
HDMI Splitter, 8-port, 1080p, 3D, High Speed 2.25 Ghz/225 MHz, metal housing, black
- Splitting of HDMI video signals to up to eight playback devices
- Video resolution: 1920 x 1200, 1080p
- Supports Standard HDMI
- Supports HDCP
- Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
- Cascadable (one level) to up to 64 HDMI ports
The Digitus 8-Port HDMI Splitter allows you to distribute video signals to up to eight playback devices (TVs, displays, monitors, projectors, etc.). It supports video resolutions of up to 1080p (Full HD). It provides the ideal solution for professional applications, such as video wall presentations or product launches (offices/business spaces, trade fair exhibits, display windows, waiting rooms, restaurants/cafés, etc.). The splitter can be cascaded to one level and up to eight additional HDMI 8-Port Splitters can be connected in order to display the signal on a maximum of 64 playback devices.
Key Features
- Splitting of HDMI video signals to up to eight playback devices

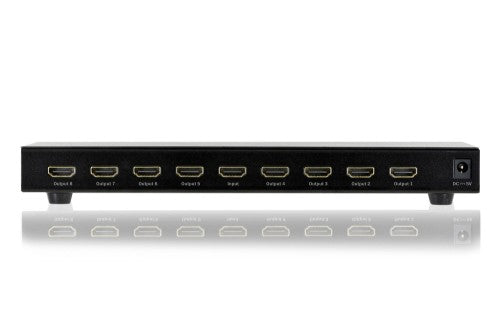

- HDMI connections: 1x input, 8x outputs
- Video resolution: 1920 x 1200, 1080p
- Supports high-speed HDMI
- Supports HDCP (HDCP 1.0/1.1/1.2)
- Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
- Cascadable (one level) to up to 64 HDMI ports (playback devices)
- Video resolution: 1920 x 1080. Suitable for 480i, 576i, 1080i, 480p, 576p, 720p, 1080p.
- Supports all 3D formats, including 1080p @ 24 Hz, 720p @ 60 Hz/50 Hz
- Bandwidth of 225 MHz/2.25 Gbps per channel (6.75 Gbps across all channels)
- Supports uncompressed audio formats (LPCM, etc.)
- Supports Deep Color: 12 bits per channel

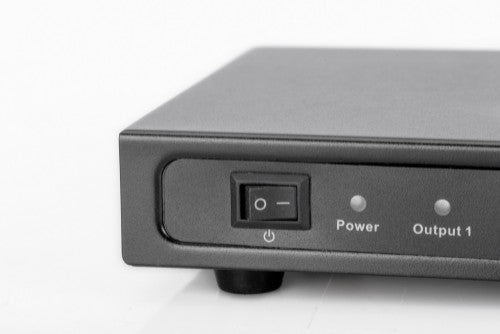

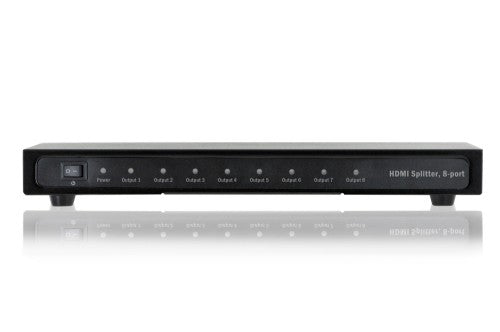

- Status LEDs (connection status)
- External power supply unit (5V/3A)
- Dimensions: L 11.1 x W 25.8 x D 2.7 cm
- Weight: 730 g
Description
Splitting of HDMI video signals to up to eight output devices (TVs, monitors, displays)- Splitting of HDMI video signals to up to eight playback devices
- Video resolution: 1920 x 1200, 1080p
- Supports Standard HDMI
- Supports HDCP
- Supports compressed audio formats, for example, DTS Digital, Dolby Digital (including DTS-HD and Dolby TrueHD)
- Cascadable (one level) to up to 64 HDMI ports
The Digitus 8-Port HDMI Splitter allows you to distribute video signals to up to eight playback devices (TVs, displays, monitors, projectors, etc.). It supports video resolutions of up to 1080p (Full HD). It provides the ideal solution for professional applications, such as video wall presentations or product launches (offices/business spaces, trade fair exhibits, display windows, waiting rooms, restaurants/cafés, etc.). The splitter can be cascaded to one level and up to eight additional HDMI 8-Port Splitters can be connected in order to display the signal on a maximum of 64 playback devices.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 8 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| DC-in jack | Yes |
| Features | |
| LED indicators | Yes |
| Dolby technologies | DTS-HD, Dolby Digital, Dolby TrueHD |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Country of origin | China |
| Weight & dimensions | |
| Weight | 730 g |
| Dimensions (WxDxH) | 258 x 27 x 111 mm |
| Package weight | 1.11 kg |
| Package depth | 240 mm |
| Package volume | 3894 cm³ |
| Package width | 295 mm |
| Packaging data | |
| Package weight | 1.11 kg |
| Package depth | 240 mm |
| Package volume | 3894 cm³ |
| Package width | 295 mm |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Connector 1 | HDMI |
| Dolby technologies | DTS-HD, Dolby Digital, Dolby TrueHD |
| Package width | 295 mm |
| Video out | 8x HDMI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| UK Trade Tariff code | 85437090 |
