5GHz, 2.4GHz, 10/100/1000 Mbit/s, RouterOS 4, USB 2.0, 3G/4G
Description

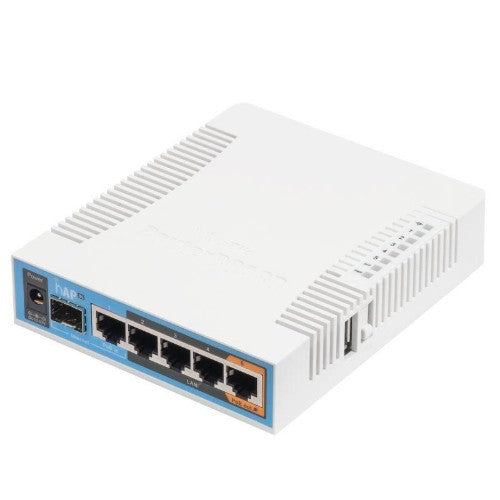

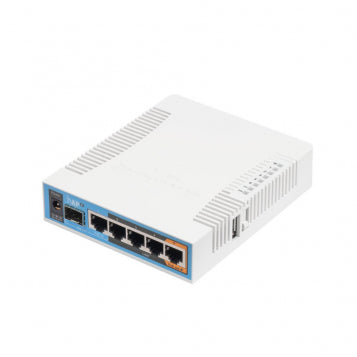

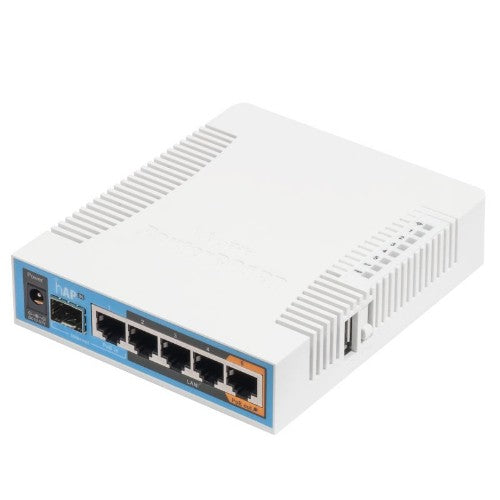

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and a SFP cage, for connecting active or passive optical network modules.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
500 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
500 Mbit/s |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Network |
|---|
| Internal |
No |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Memory |
|---|
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
500 Mbit/s |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
5 |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
11 V |
| Design |
|---|
| Product colour |
White |
| Internal |
No |
| Antenna |
|---|
| Antenna gain level (max) |
2 dBi |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
-20 - 60% |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Weight & dimensions |
|---|
| Width |
114 mm |
| Depth |
29 mm |
| Height |
137 mm |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
