23"-43" Slim TV Wall Mount Bracket
Key Features
- "Ultra Slim profile for space saving
- Max. Load Capacity: 25Kg
- Max. VESA: 200x200
- Tool-free tilt adjustment
- VESA standards compliant"
Description

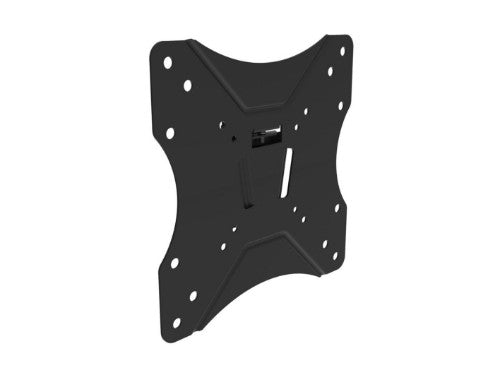

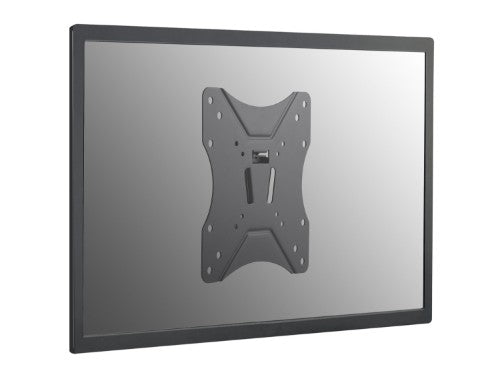

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
58.4 cm (23") |
| Panel mounting interface |
75 x 75,100 x 100,200 x 100,200 x 200 |
| Number of displays supported |
1 |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
200 x 200 mm |
| Maximum screen size |
106.7 cm (42") |
| Maximum weight capacity |
20 kg |
| Ergonomics |
|---|
| Tilt angle range |
-12 - 3° |
| Distance to the wall (max) |
3.5 cm |
| Technical details |
|---|
| Number of displays supported |
1 |
| Distance to the wall (max) |
3.5 cm |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Certification |
CE |
| Product colour |
Black |
| Housing material |
Steel |
| Certificates |
|---|
| Certification |
CE |
| Packaging content |
|---|
| Screws included |
Yes |
| Quick installation guide |
Yes |
| Weight & dimensions |
|---|

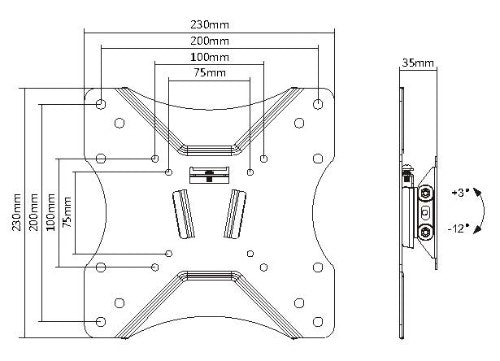

| Width |
230 mm |
| Depth |
35 mm |
| Height |
230 mm |
| Weight |
850 g |
| Packaging data |
|---|
| Package width |
245 mm |
| Package depth |
45 mm |
| Package height |
245 mm |
| Package weight |
1.1 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
