Description
LED, 1D, 624 nm, 300 scans/s, USB, IP65, 33 x 24 x 41.1 mm
Applications
This fixed mount scanner is ideal in situations that require 1D scanning at a fast speed. Our existing customers use this scanner in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and in medical or pharmaceutical analysis machines.
How we describe the NLV-4001

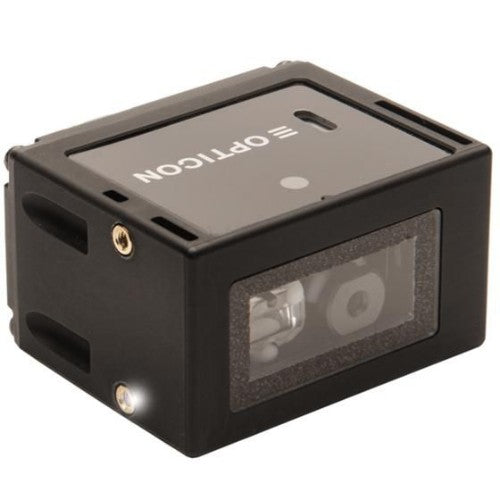

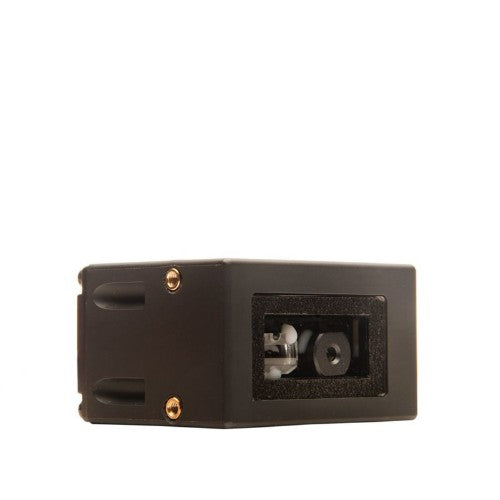

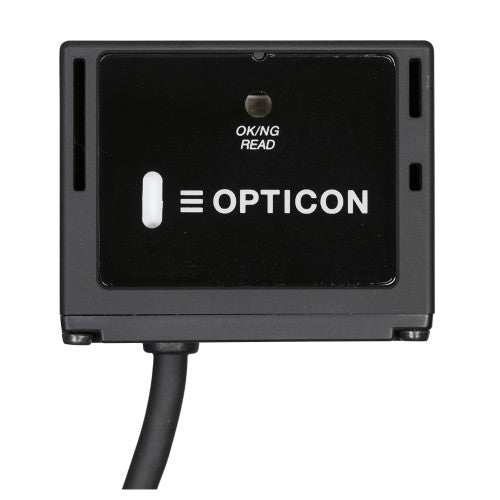

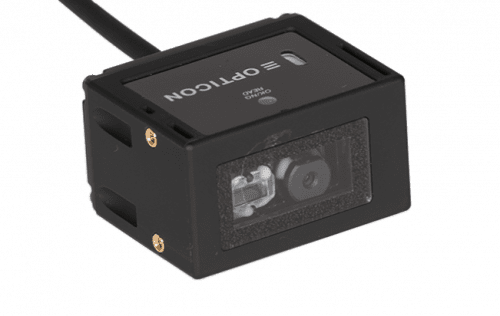

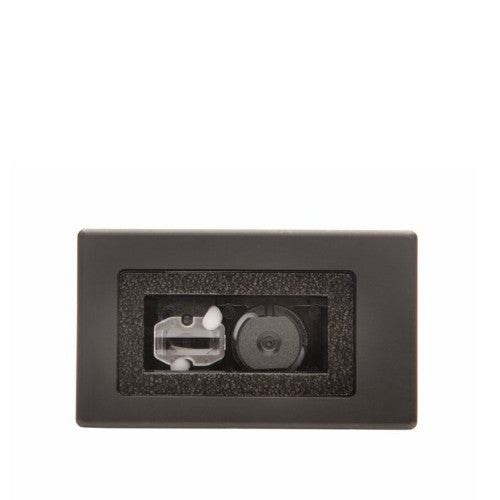

The NLV-4001 is the smallest fix position scanner in the NLV-series and scans at a fast speed of 300 scans per second. This fixed position scanner is developed for the most demanding applications requiring a device capable of reading 1D barcodes. The fix position scanner is very rugged with a IP65 rating.
Offered with the choice of USBCOM or Serial interface, this scanner is flexible enough to suit most OEM/ODM applications.
Features
Some features why the NLV-4001 should be in your next ODM or OEM project:
- 300 scans per second
- Smallest in the NLV-series
- USB HID/VCP and RS-232
- Rugged; IP 65
Description
The NLV-4001 is our latest development in the NLV series. This small 1D CCD scanner is easily integrated and scans at a fast speed. The fix position scanner is perfect for the most demanding applications and the scanner is also very resistant with an IP65 rating.Applications
This fixed mount scanner is ideal in situations that require 1D scanning at a fast speed. Our existing customers use this scanner in retail P.O.S., self service solutions like a kiosk, parking lot ticket machines and in medical or pharmaceutical analysis machines.
How we describe the NLV-4001
The NLV-4001 is the smallest fix position scanner in the NLV-series and scans at a fast speed of 300 scans per second. This fixed position scanner is developed for the most demanding applications requiring a device capable of reading 1D barcodes. The fix position scanner is very rugged with a IP65 rating.
Offered with the choice of USBCOM or Serial interface, this scanner is flexible enough to suit most OEM/ODM applications.
Features
Some features why the NLV-4001 should be in your next ODM or OEM project:
- 300 scans per second
- Smallest in the NLV-series
- USB HID/VCP and RS-232
- Rugged; IP 65
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, JAN, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Yaw reading angle | -65 - 65° |
| Wavelength | 624 nm |
| Tilt reading angle | -25 - 25° |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 300 reads/s |
| Pitch reading angle | -45 - 45° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC62471, EN55022, EN55024, FCC 15 B B, EN61000-6-1 |
| Buzzer | Yes |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC62471, EN55022, EN55024, FCC 15 B B, EN61000-6-1 |
| Power | |
| Power consumption | 180 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 33 mm |
| Depth | 41.1 mm |
| Height | 24 mm |
| Weight | 55 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC62471, EN55022, EN55024, FCC 15 B B, EN61000-6-1 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |

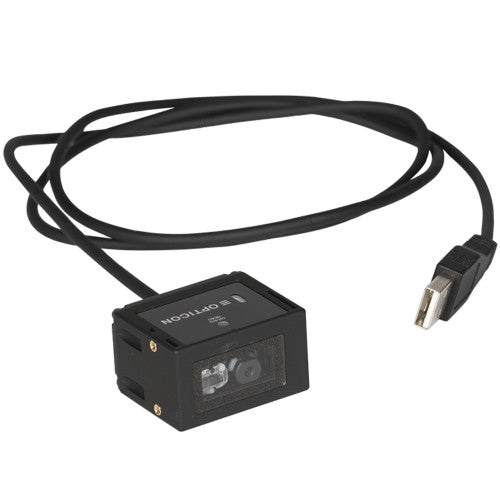

| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
