802.11b/g/n, 2.4 GHz, 3.5 W, RouterOS, 48x49x11 mm
Description

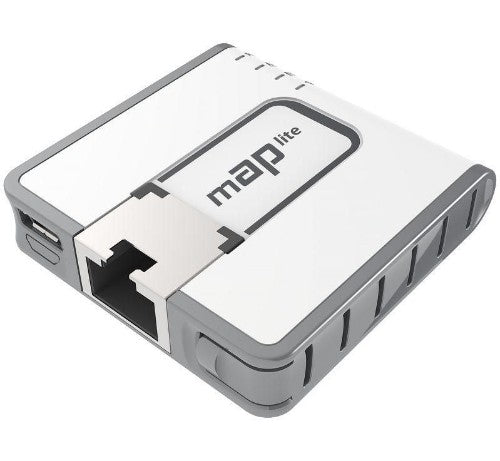

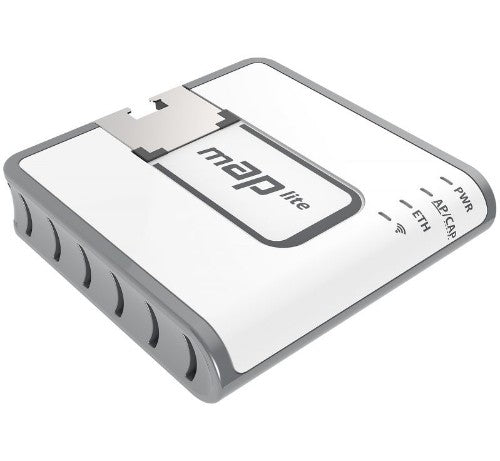

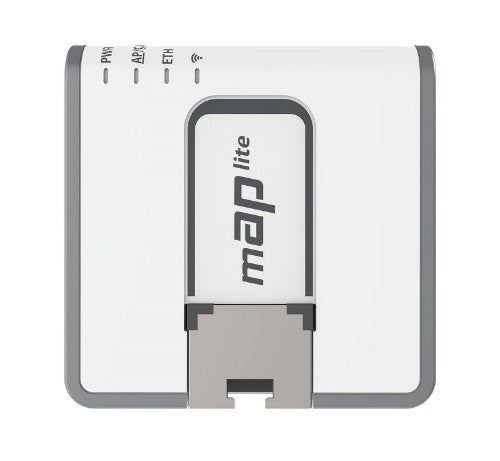

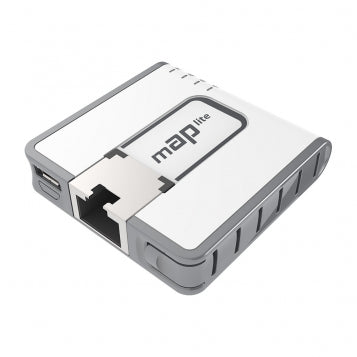

mAP lite

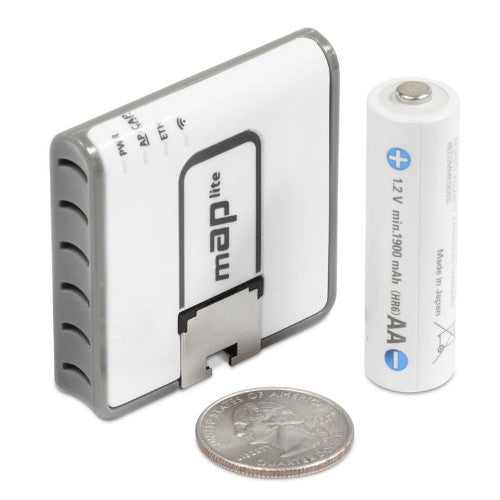

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Bandwidth |
2.4 GHz |
| Receiver sensitivity |
1MBit/s -96
11MBit/s -89
6MBit/s -93
54MBit/s -74
MCS0 -93
MCS7 -71 |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Operating system installed |
RouterOS |
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Network |
|---|
| Internal |
No |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Bandwidth |
|---|
| Bandwidth |
2.4 GHz |
| Memory |
|---|
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Bandwidth |
2.4 GHz |
| Receiver sensitivity |
1MBit/s -96
11MBit/s -89
6MBit/s -93
54MBit/s -74
MCS0 -93
MCS7 -71 |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Operating system installed |
RouterOS |
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power consumption (max) |
3.5 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Product colour |
White |
| Internal |
No |
| Antenna |
|---|
| Antenna gain level (max) |
1.5 dBi |
| Technical details |
|---|
| Receiver sensitivity |
1MBit/s -96
11MBit/s -89
6MBit/s -93
54MBit/s -74
MCS0 -93
MCS7 -71 |
| Harmonized System (HS) code |
85176990 |
| Processor |
|---|
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Width |
49 mm |
| Depth |
11 mm |
| Height |
48 mm |
| Packaging data |
|---|

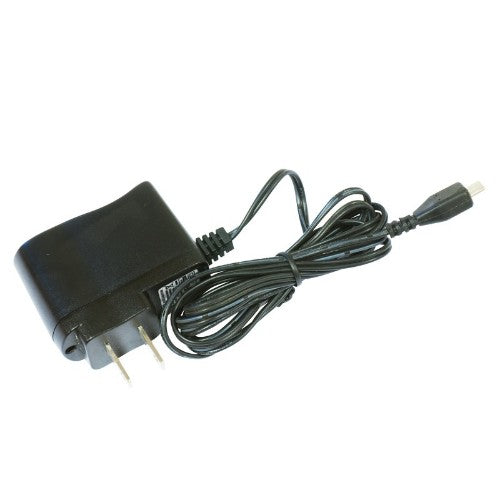

| AC adapter included |
Yes |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 70 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
