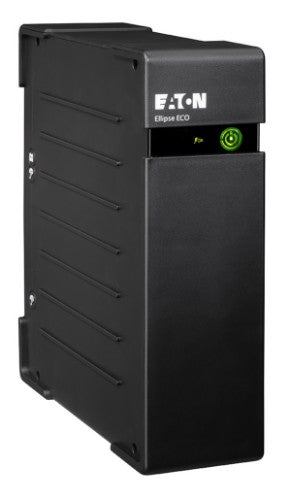

Ellipse ECO 650 FR
Description
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Specifications
| Power |
|---|
| Output power |
400 W |
| Input operation voltage (min) |
161 V |
| Input operation voltage (max) |
284 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Emergency Power Off (EPO) |
No |
| Output power capacity |
0.65 kVA |
| Performance |
|---|
| Audible alarm modes |
Battery replacement |
| UPS topology |
Standby (Offline) |
| LED indicators |
Battery replacement |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Audible alarm modes |
Battery replacement |
| UPS topology |
Standby (Offline) |
| Output power |
400 W |
| Input operation voltage (min) |
161 V |
| Input operation voltage (max) |
284 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Emergency Power Off (EPO) |
No |
| Audible alarm(s) |
Yes |
| Output power capacity |
0.65 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
Type E |
| Power plug |
C14 coupler |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
9 min |
| Hot-swap battery |
No |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Tower |
| LED indicators |
Battery replacement |
| Product colour |
Black |
| Safety |
IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Weight |
3.6 kg |
| Width |
81 mm |
| Height |
263 mm |
| Depth |
235 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Safety |
IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Other features |
|---|
| Input connection type |
FR |
| Overload protection |
Yes |
| Nominal output voltage |
220-240 V |
| Nominal input voltage |
230 V |
