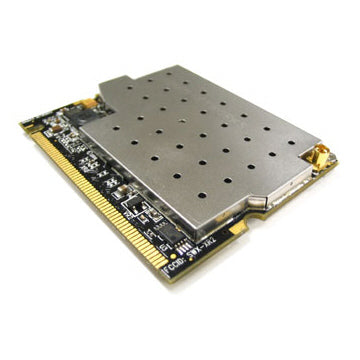

2.4GHz, 600mw, 802.11b/g, AR5414, 32-bit mini-PCI Type IIIA, 3.3VDC, 54Mbps
Description
The XtremeRange series of radio modules by Ubiquiti leverages our strong knowledge and experience gained from customer interactions, field performance evaluations, and lab research; and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards. The XtremeRange2 is a carrier-class 802.1 1b/g based 2.4GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the high levels of performance and reliability
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
WLAN |
| Host interface |
Mini PCI Express |
| Connectivity technology |
Wireless |
| Bandwidth |
|---|
| Bandwidth |
2.4 GHz |
| Maximum data transfer rate |
54 Mbit/s |
| Network |
|---|
| Chipset |
AR5414 |
| Bandwidth |
2.4 GHz |
| Security algorithms |
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2 |
| Networking standards |
IEEE 802.11b, IEEE 802.11g |
| Maximum data transfer rate |
54 Mbit/s |
| Antenna |
|---|
| Antenna |
Yes |
| Antenna connector type |
MMCX |
| Technical details |
|---|
| Channel bandwidth |
40 MHz |
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
| Compliance certificates |
RoHS |
| Design |
|---|
| Chipset |
AR5414 |
| Antenna |
Yes |
| Internal |
Yes |
| Antenna connector type |
MMCX |
| Power |
|---|
| Output voltage |
3.3 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-45 - 90 °C |
| Security |
|---|
| Security algorithms |
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2 |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Performance |
|---|
| Security algorithms |
128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, TKIP, WPA, WPA2 |
| Channel bandwidth |
40 MHz |
| Other features |
|---|
| Chipset |
AR5414 |
| Channel bandwidth |
40 MHz |
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
