Description

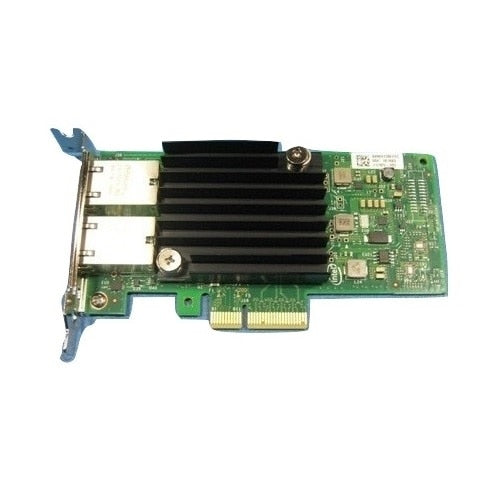

Intel X550 Dual Port 10G Base-T Low Profile Adapter
- Offers 10GbE Ethernet
- Support demanding workloads for enterprise, cloud, and telecommunication service providers and data centers
Overview
The Intel X550 Dual Port 10G Base-T Adapter, Low Profile Ethernet is is validated and optimized on Intel® Xeon® processors and is backward Compatible with 1000BASE-T. It has an integrated MAC + 10GBASE-T PHYs, Single-Chip Solution and is designed for Multi-Core Processors: MSI/MSI-X and Direct Cache Access, Flow Director, up to 128 Tx/Rx physical queues per port. It is the best choice for virtualized servers, providing advanced features including Intel® Virtualization Technology for Connectivity (VT-c), Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV) up to 64 VFs per port, NVGRE and VXLAN stateless offloads delivering amazing performance.
- Built to enable Network Virtualization and Network Functions Virtualization (NFV)
- Unparalleled supply line, customer support, and warranty
- Designed to support demanding workloads for enterprise, cloud, and telecommunication service providers and data centers.
- Intel is the #1 Ethernet vendor- having shipped over 1 billion Ethernet ports
Description
Highlights- Offers 10GbE Ethernet
- Support demanding workloads for enterprise, cloud, and telecommunication service providers and data centers
Overview
The Intel X550 Dual Port 10G Base-T Adapter, Low Profile Ethernet is is validated and optimized on Intel® Xeon® processors and is backward Compatible with 1000BASE-T. It has an integrated MAC + 10GBASE-T PHYs, Single-Chip Solution and is designed for Multi-Core Processors: MSI/MSI-X and Direct Cache Access, Flow Director, up to 128 Tx/Rx physical queues per port. It is the best choice for virtualized servers, providing advanced features including Intel® Virtualization Technology for Connectivity (VT-c), Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV) up to 64 VFs per port, NVGRE and VXLAN stateless offloads delivering amazing performance.
- Built to enable Network Virtualization and Network Functions Virtualization (NFV)
- Unparalleled supply line, customer support, and warranty
- Designed to support demanding workloads for enterprise, cloud, and telecommunication service providers and data centers.
- Intel is the #1 Ethernet vendor- having shipped over 1 billion Ethernet ports
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Intel |
| Ethernet interface type | 10 Gigabit Ethernet |
| Data link protocols | 10 GigE |
| Ethernet LAN | Yes |
| Cabling technology | 10GBase-T |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel® X550 |
| Ethernet LAN data rates | 10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Compatible products | PowerEdge FC430, FC830, M630, M830, R430, R530, R630, R730, R730xd, R930, T430, T630 |
| Product colour | Black, Green |
| Wake-on-LAN ready | Yes |
| Design | |
| Compatible products | PowerEdge FC430, FC830, M630, M830, R430, R530, R630, R730, R730xd, R930, T430, T630 |
| Product colour | Black, Green |
| Chipset | Intel |
| Internal | Yes |
| Component for | Server |
| Protocols | |
| Data link protocols | 10 GigE |
| Performance | |
| Compatible products | PowerEdge FC430, FC830, M630, M830, R430, R530, R630, R730, R730xd, R930, T430, T630 |
| Wake-on-LAN ready | Yes |
| Other features | |
| Chipset | Intel |
