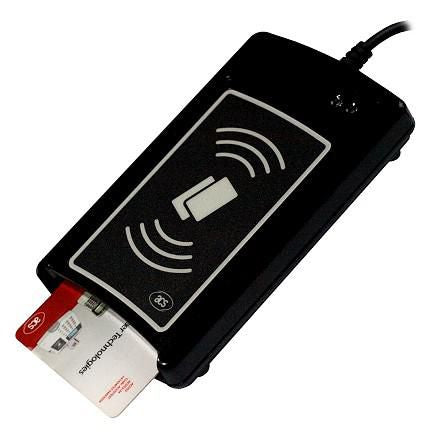

ACS ACR1281U-C1 DualBoost II smart card reader USB USB 1.1 Black

ACR1281U-C1ACSA, RS-232, DB-9, T=0; T=1, 120.5 x 72 x 20.4 mm, 140 g

Key Features

• USB 2.0 Full Speed Interface
• CCID Compliance
• Read/write speed of up to 848 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
• Built-in anti-collision feature (only one tag is accessed at any time)
• Supports extended APDU (max. 64 kbytes)
• Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
• Supports CAC (Common Access Card)
• Supports PIV (Personal Identity Verification Card)
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards
• ISO 7816-compliant SAM slot
• Supports PC/SC
• Supports CT-API (through wrapper on top of PC/SC)
• Two user-controllable LEDs
• User-controllable buzzer
• USB Firmware Upgradability

Description

ACR1281U-C1 DualBoost II is the second generation of ACS’s ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

Specifications

Features
Compliance industry standards	ISO 14443 A & B Parts 1-4
Product colour	Black
Cable length	2 m
Software upgradeable	Yes
Product type	Universal smart card reader
Application area	Access control, Banking & payments
Technical details
Supported protocols	ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL
Compliance industry standards	ISO 14443 A & B Parts 1-4
Product colour	Black
Cable length	2 m
Design
Product colour	Black
Cable length	2 m
Ports & interfaces
Supported protocols	ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL
Compliance industry standards	ISO 14443 A & B Parts 1-4
Interface	USB 1.1
Colour
Product colour	Black
Power
Operating voltage	5 V
Power source	USB
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	0 - 90%
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android
Weight & dimensions
Width	72 mm
Height	120.5 mm
Depth	20.4 mm
Weight	140 g
