650 MHz, 64 MB RAM, Wi-Fi 802.11b/g/n, 2.4GHz, PoE, microUSB, 11-57 V, RouterOS, 68 x 68 x 19 mm
Description

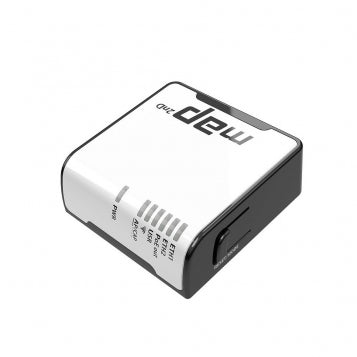

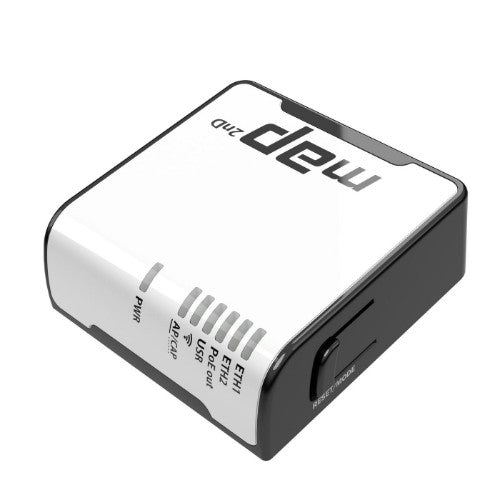

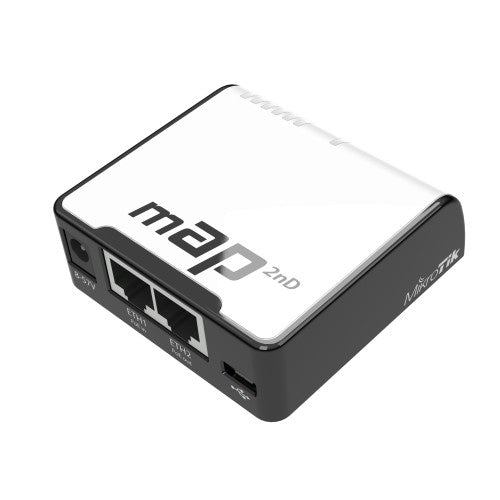

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Operating system installed |
Linux |
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Network |
|---|
| Internal |
No |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Memory |
|---|
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Operating system installed |
Linux |
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-B |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Power |
|---|
| Output voltage |
24 V |
| Output current |
0.8 A |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
Table |
| Product colour |
Black, White |
| Internal |
No |
| LED indicators |
Yes |
| Antenna |
|---|
| Antenna gain level (max) |
1.2 dBi |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Processor |
|---|
| Built-in processor |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Weight & dimensions |
|---|
| Width |
68 mm |
| Depth |
68 mm |
| Height |
19 mm |
| Packaging data |
|---|
| Cables included |

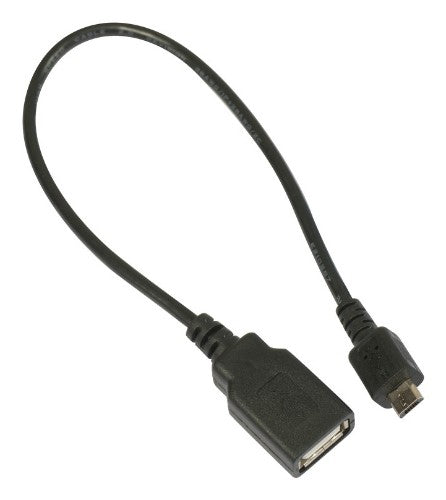

USB |
| AC adapter included |

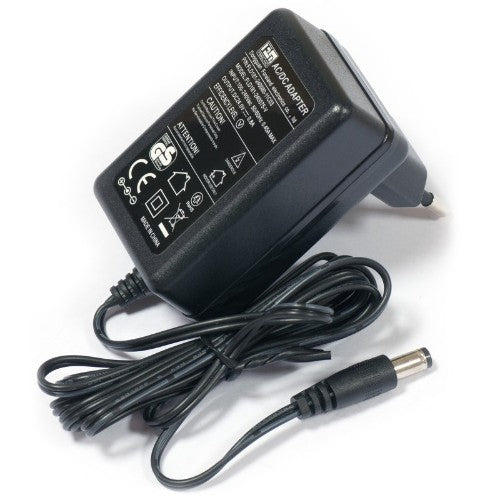

Yes |
| Packaging content |
|---|
| Cables included |
USB |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
-10 - 70% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
