Description
StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Top-Loading Hard Drive Bay (SDOCKU313E)
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.
Top-loading design for easy drive access

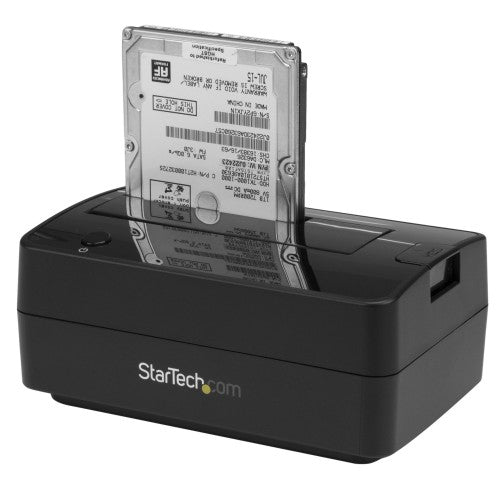

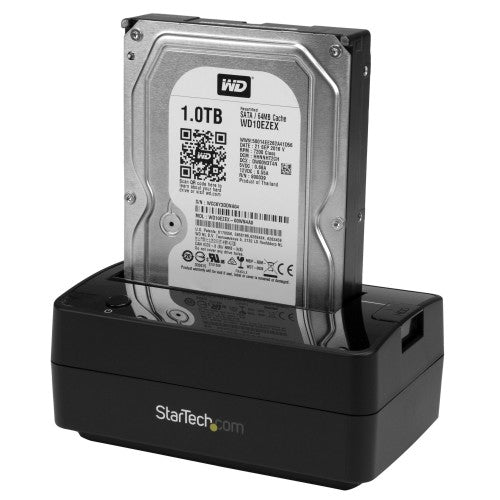

The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility

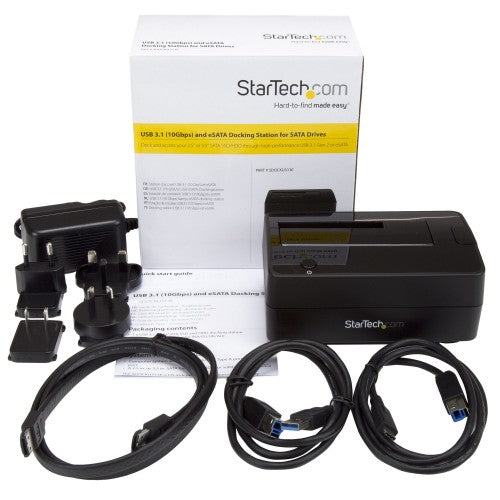

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- HARD DRIVE DOCKING STATION: This single-bay hard drive docking station enables access to a 2.5/3.5" SATA drive for file backup, imaging, and data transfer over USB 3.2 Gen 2 (10 Gbps) or eSATA
- DRIVE COMPATIBILITY: Supports a 2.5/3.5" SATA HDD/SSD of any capacity; 4Kn Compatible; OS Independent; IDE (SAT2IDEADP), mSATA (SAT2MSAT25), & M.2 SATA (SAT32M225) adapters sold separately; Includes 3.3ft (1m) eSATA, USB-A and C cables
- PERFORMANCE: Get maximum performance from your SATA III drive with a 10 Gbps USB 3.2 or 6 Gbps eSATA host connection. Built-in SATA controller with upgradeable firmware; Backwards compatible with prior SATA & USB versions; No software / drivers required
- SPECS: Single-Bay Hard Drive Dock; SATA I/II/III with TRIM; eSATA (6 Gbps) or USB 3.2 Gen 2 (10 Gbps) Host Connection; Toolless Design; Top-Loading Drive Bay with Eject Button; Power and Activity LEDs; Includes 3.3ft (1m) eSATA, USB-A and C cables
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this Single-Bay Hard Drive Dock is backed for 2 years, including free lifetime 24/5 multilingual technical assistance
Description
External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATAConnect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.
Top-loading design for easy drive access
The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 6 TB |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-B |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Package width | 161 mm |
| Package height | 91 mm |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Chipset | ASMedia - ASM1351 |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Features | |
| UASP support | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| LED indicators | Activity, Power |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Certification | CE, FCC, REACH |
| Chipset | ASMedia - ASM1351 |
| Cooling | |
| Built-in fan | No |
| Power | |
| Power plug type | Type M |
| AC input voltage | 110-240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Weight & dimensions | |
| Width | 93 mm |
| Depth | 145 mm |
| Height | 63 mm |
| Weight | 410 g |
| Packaging data | |
| Package depth | 171 mm |
| Package width | 161 mm |
| Package height | 91 mm |
| Package weight | 862 g |
| Packaging content | |
| Quick installation guide | Yes |
| Included power plug types | AU, EU, NA, UK |
| AC adapter included | Yes |
| Cables included | USB, eSATA |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Indication | |
| LED indicators | Activity, Power |
| Ethernet LAN features | |
| LED indicators | Activity, Power |
| Other features | |
| Chipset | ASMedia - ASM1351 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 382 mm |
| Master (outer) case length | 484 mm |
| Master (outer) case height | 184 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 84733080 |
