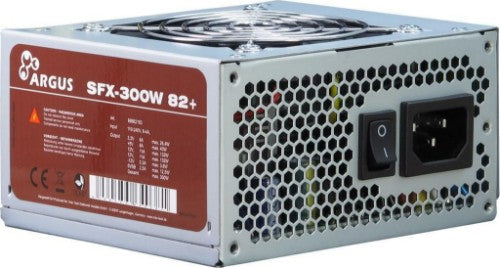

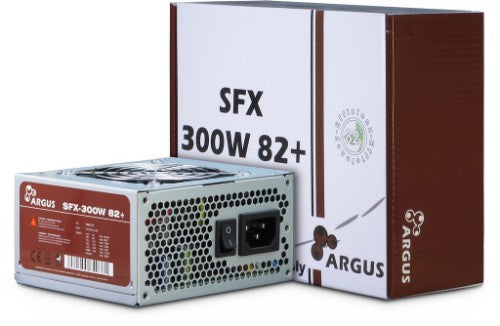

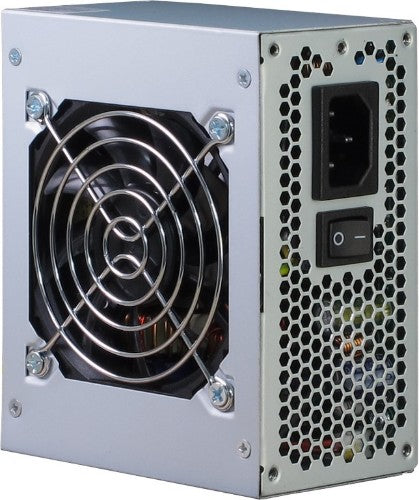

SFX-300W, 300W, Active PFC, Fan 80mm
Description
The SFX-300W is the perfect SFX-PSU for Desktop-Systems with particular performance requirements.
The PSU convinces due to several connection options. It also offers a PCIe 6+2pin plug to supply a separate graphics card with higher power consumption.
With an efficiency of more than 82+, the SFX-300W has a positive impact on your wallet and protects the environment.
Specifications
| Cooling |
|---|
| Fan diameter |
8 cm |
| Number of fans |
1 fan(s) |
| Design |
|---|
| 80 PLUS certification |
80 PLUS |
| Product colour |
Grey |
| Fan diameter |
8 cm |
| Number of fans |
1 fan(s) |
| Power |
|---|
| Total power |
300 W |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
4 - 8 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
26.4 W |
| Combined power (+12V) |
132 W |
| Combined power (+5V) |
40 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
8 A |
| Max output current (+12V1) |
11 A |
| Max output current (+12V2) |
11 A |
| Max output current (+5V) |
8 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
2.5 A |
| Power protection features |
Over current, Over voltage, Short circuit |
| Ports & interfaces |
|---|
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
3 |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
1 |
| CPU power connector (4+4 pin) |
Yes |
| Floppy drive power connector |
1 |
| Performance |
|---|
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS |
| Purpose |
PC |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Width |
125 mm |
| Depth |
100 mm |
| Height |
63.5 mm |
| Weight |
810 g |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS |
| Other features |
|---|
| Harmonized System (HS) code |
84733020 |
