Description

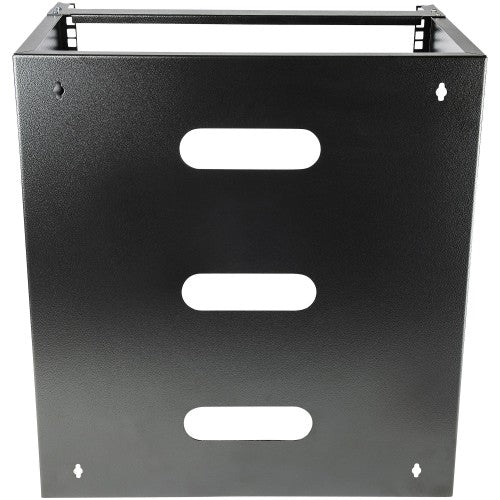

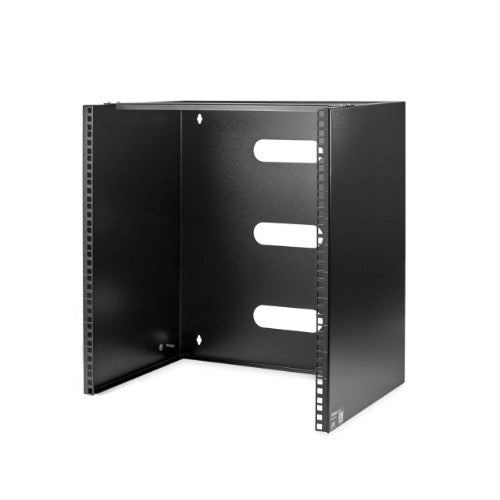

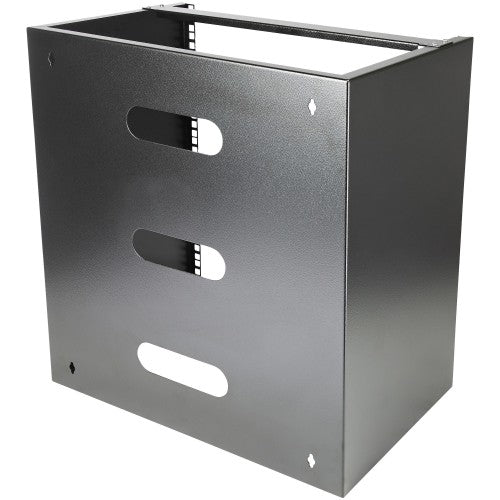

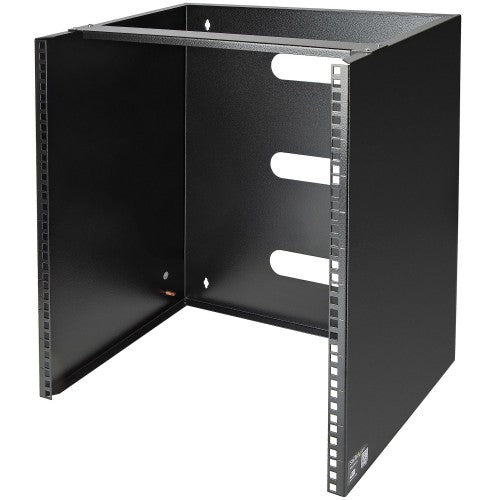

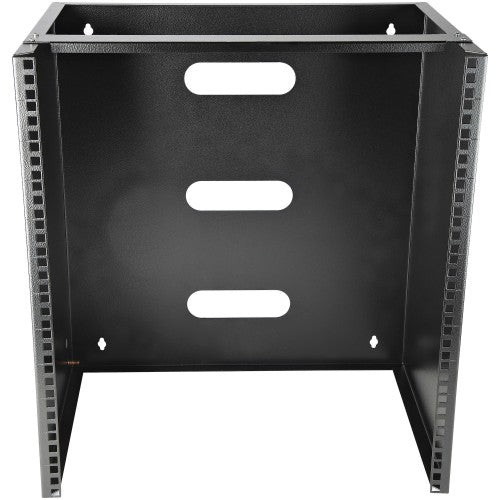

StarTech.com 12U Wall Mount Patch Panel Bracket - 13.75 in. (34.93 cm) Max. Mounting Depth - 19" Patch Panel Rack for Shallow Network Equipment- 125lbs Capacity (WALLMNT12)
This wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation
The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.
The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- STARTECH.COM ADVANTAGE: IT professionals’ choice for over 30 years; this 12U wallmount rack backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
- 12U WALL MOUNT RACK: This 19-inch-wide low profile wall mounted rack has a maximum mounting depth of 14 in [35 cm], recommended for networking equipment up to 12in deep, leaving 2in for cable routing; maximum weight capacity of 125lbs [57kg]

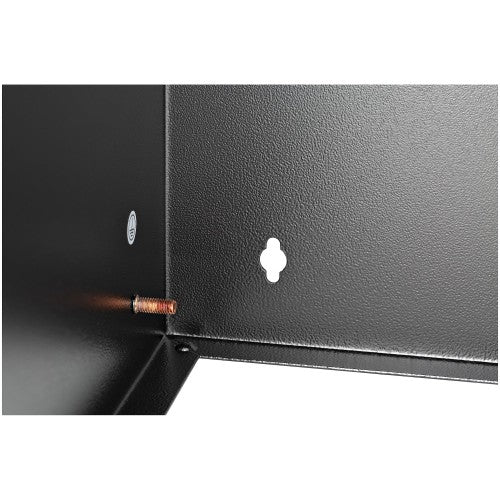

- Hassle-free setup with wall mounting holes spaced 16 in. apart, matching standard dry-wall framework

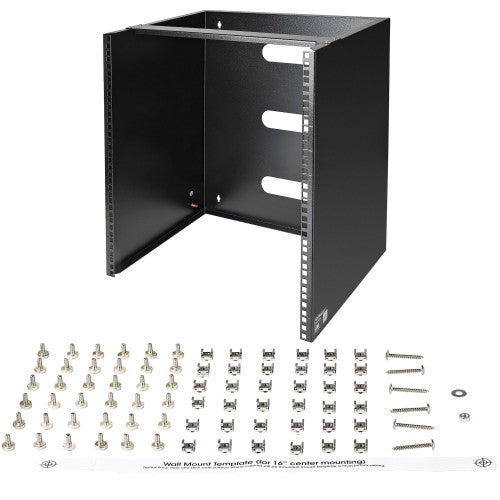

- EASY TO INSTALL: The 12U wall mounting patch panel bracket ships fully assembled and comes complete with M6 Screws and M6 Cage Nuts for easier equipment installation, to save you the hassle of sourcing separate mounting hardware
- EASY CABLE MANAGEMENT: Built with efficiency in mind, the small wall mount patch panel bracket has rear cable routing access for easy cable organization in your network closet, server room, wiring closet, classroom
- COLD-ROLLED STEEL CONSTRUCTION: The wall mounting data rack features a solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution & includes wall mounting hardware; installs onto 16" studs with mounting holes
Description
Mount equipment that is up to 13.75 inches deep, such as patch panels or network switches, to your wallThis wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation
The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.
The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 530 mm |
| Package width | 383 mm |
| Package height | 567 mm |
| Package weight | 11 kg |
| Mounting depth (max) | 34.9 cm |
| Width | 499 mm |
| Depth | 350 mm |
| Height | 541 mm |
| Weight | 8.7 kg |
| Maximum weight capacity | 56.7 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 37 |
| Screws included | Yes |
| Number of screws | 42 |
| Features | |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |

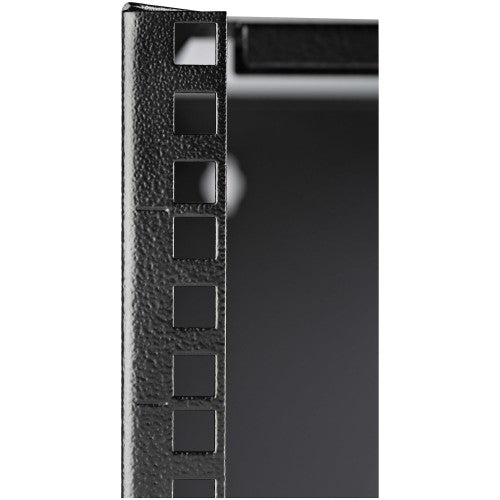

| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 56.7 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Packaging data | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 37 |
| Package depth | 530 mm |
| Package width | 383 mm |
| Package height | 567 mm |
| Package weight | 11 kg |
| Screws included | Yes |
| Number of screws | 42 |
| Technical details | |
| Package width | 383 mm |
| Package height | 567 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, REACH |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 383 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 567 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
